Removing Instrument Cluster

Move steering wheel down fully and out as far as it will go.

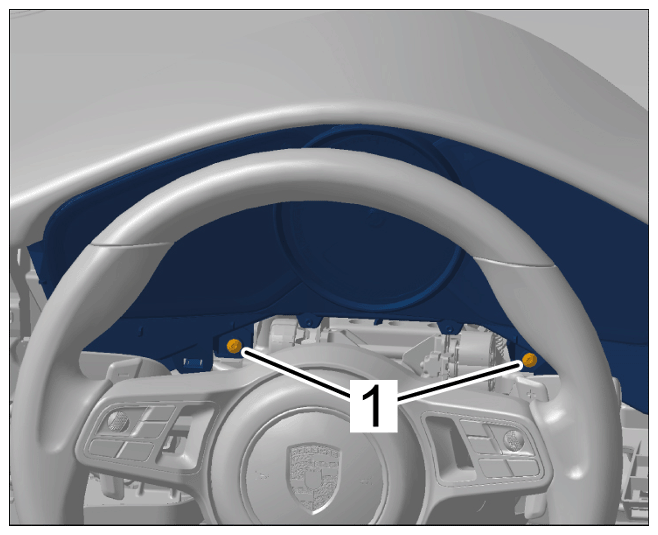

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

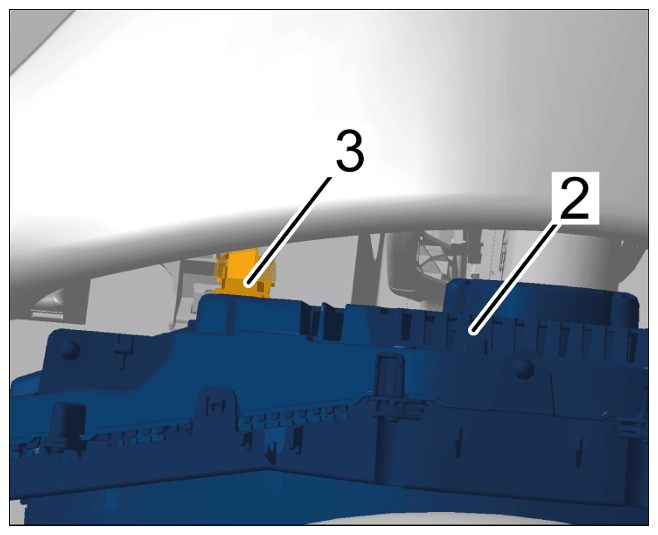

Loosen instrument cluster -2- .
1. 3.1 Pull the instrument cluster -2- down first and then out towards the steering wheel.
2. 3.2 Release and unplug electric plug connection -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening instrument cluster

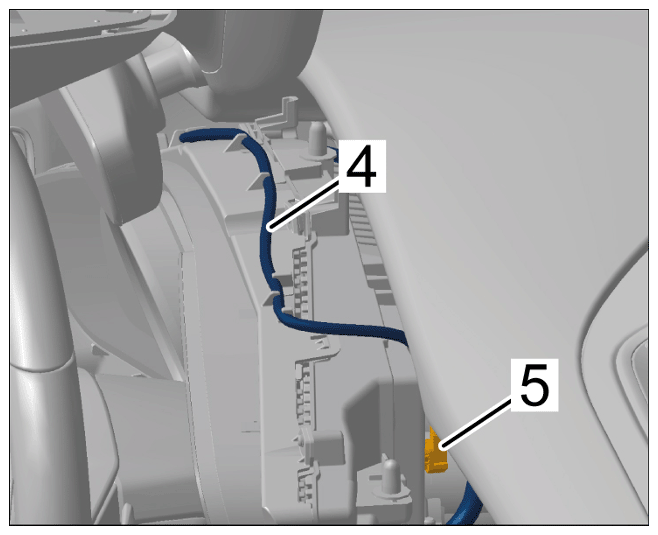

Disconnect electric line -4- .
1. 4.1 Disengage electric line -4- from the guides.
2. 4.2 Release and unplug electric plug connection -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection
