Removing Rear Air Guide At The Centre

  1. Loosen rear air guide at the front.
  2. Pull rear air guide at the centre -4-  out of rear air guide at the front and remove it.

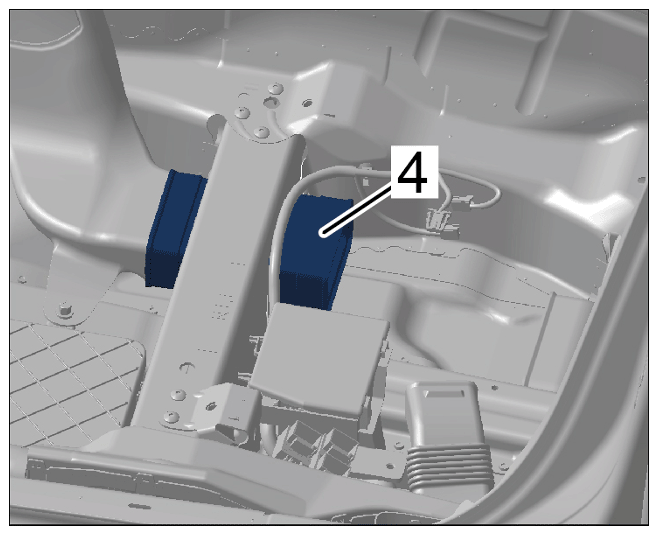

    G15874906Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off rear air guide at the centre
