Technical Values For Atf

WARNING: This page is about a different variant/trim than selected.

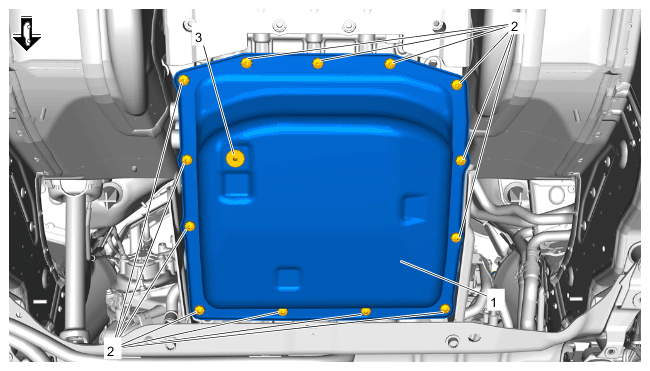

Fig 1: ATF Pan Components Location With Torque Specification

Courtesy of PORSCHE

ATF pan

1	ATF pan
2	Screws on ATF pan > Initial tightening 3 Nm (2 ftlb.) > Torque angle 60°
3	Oil drain plug on ATF pan

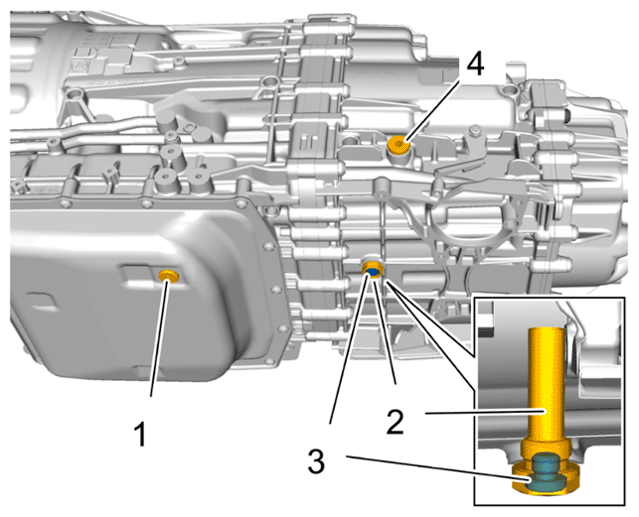

Fig 2: Oil Filler Screw And Drain Plug Components Location With Torque Specification

Courtesy of PORSCHE

Overview of oil filler screw and drain plug

1	Oil drain plug on ATF pan > Tightening torque 12 Nm (9 ftlb.)
2	Lifting tube on Porsche Doppelkupplung (PDK) > Tightening torque 27 Nm (20 ftlb.)
3	Oil inspection plug on Porsche Doppelkupplung (PDK) > Tightening torque 10 Nm (7.5 ftlb.)
4	Overflow bore on side of transmission housing > Tightening torque 27 Nm (20 ftlb.)
