Removing Muffler
WARNING: This page is about a different variant/trim than selected.
- Loosen clamp -2-
and pull off flexi-pipe -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Loosening clamp
- Unscrew nuts -4-
and remove muffler (silencer) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

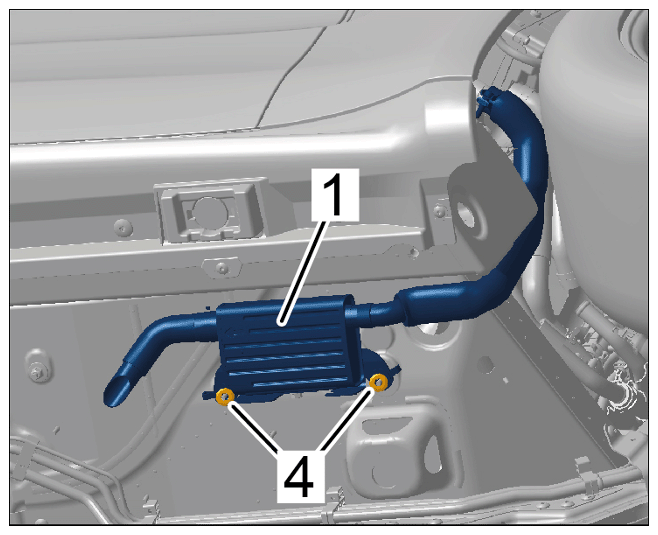

Removing muffler
