Subsequent Work
WARNING: This page is about a different variant/trim than selected.

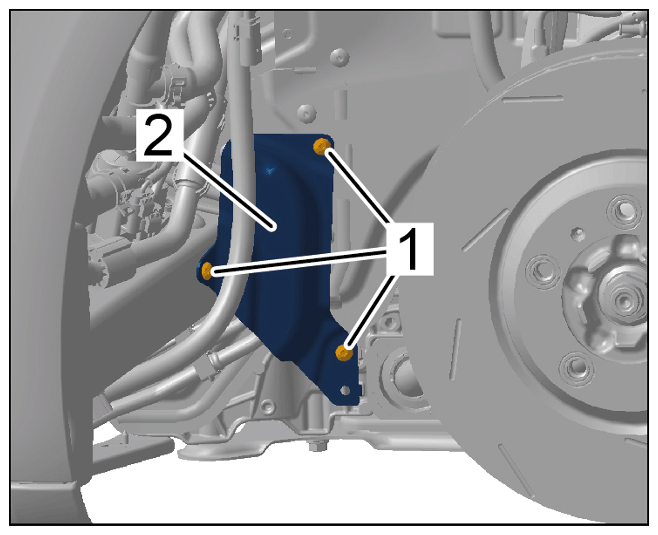

- Fit sheetmetal panel -2-
and screw in and tighten screws -1-
> Tightening torque 8 Nm (6 ftlb.)
Installing sheetmetal panel
- Install front wheel housing liner at the right (rear section).
> WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
- Install fuel tank.
> Removing and installing fuel tank
