Removing Heater Holder

WARNING: This page is about a different variant/trim than selected.
  1. Cut tie-wrap -3-  on the intake muffler.
  2. Unscrew screws -4-  and remove heater holder -1-  .

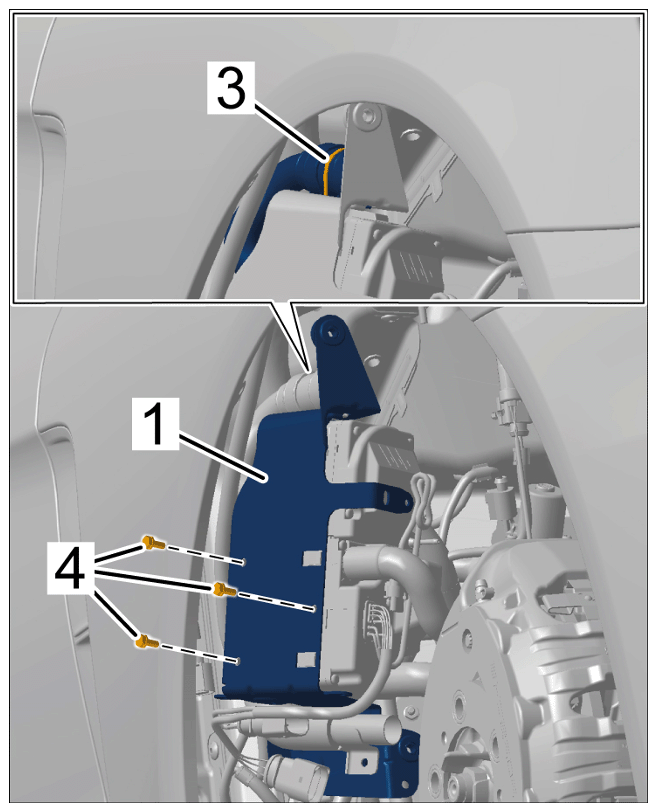

    G15875243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing heater holder
