Installing Heater Holder
WARNING: This page is about a different variant/trim than selected.
- Position rubber buffer -2-
of heater holder -1-
in the guide -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

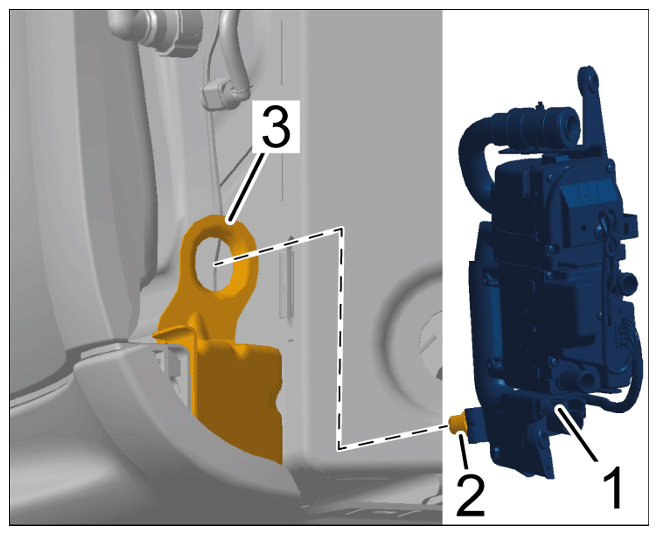

Positioning rubber buffer
- The remaining installation steps are performed in reverse order. Pay particular attention to the following:
Tightening torque for screws securing heater to holder: > Tightening torque 20 Nm (14.75 ftlb.)
