Detaching Heater With Holder

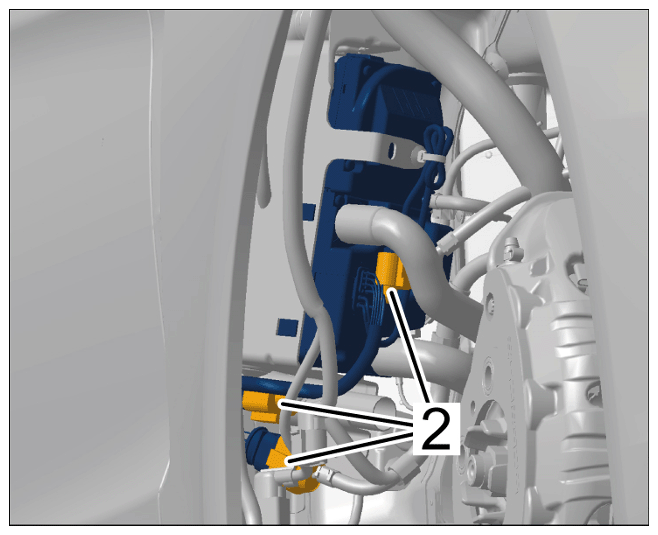

1. Release and disconnect electric plug connections -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnect the electric plug connections

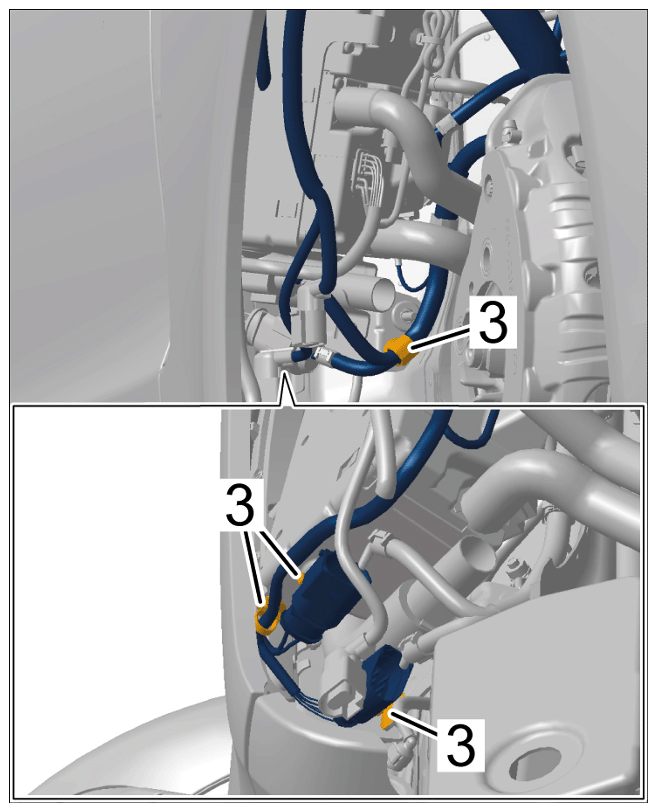

2. Unclip line bracket -3-  from heater holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping line bracket

   WARNING: Emerging fuel

   • Risk of fire

     → Avoid contact with hot parts or sources of ignition.

     → Collect emerging fuel, absorb it if necessary with a suitable binding material and dispose of properly.

     → Use suction to remove ignitable vapours.

     → Attach warning sign to vehicle in a clearly visible position.

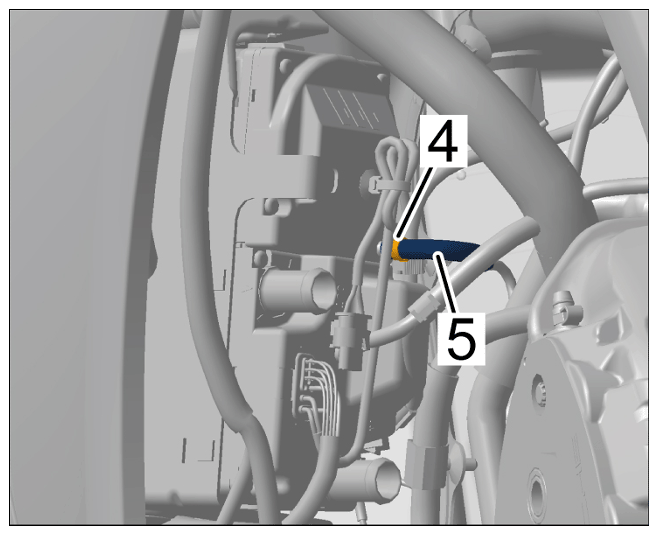

3. Open clamp -4-  and pull fuel line -5-  off the heater.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling off fuel line

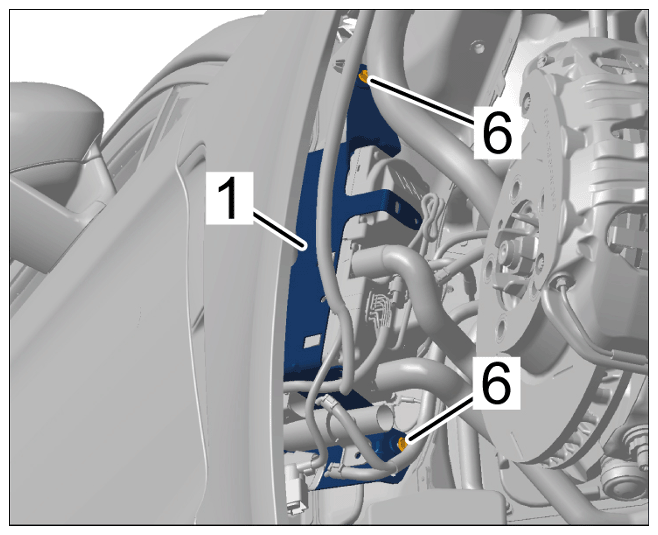

4. Unscrew nuts -6-  , pull out heater with holder -1-  in direction of travel and suspend it at a suitable place in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts
