Removing Intake Muffler

WARNING: This page is about a different variant/trim than selected.

Observe safety measures for working on vehicles with auxiliary heating.
> 8X00IN SAFETY MEASURES WHEN WORKING ON VEHICLES WITH AUXILIARY HEATING

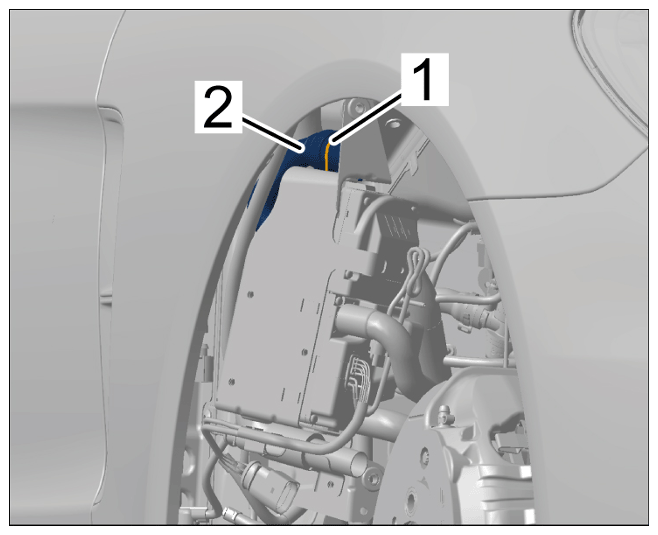

Cut tie-wrap -1- on the intake muffler -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting tie-wraps
Remove intake muffler -2- .

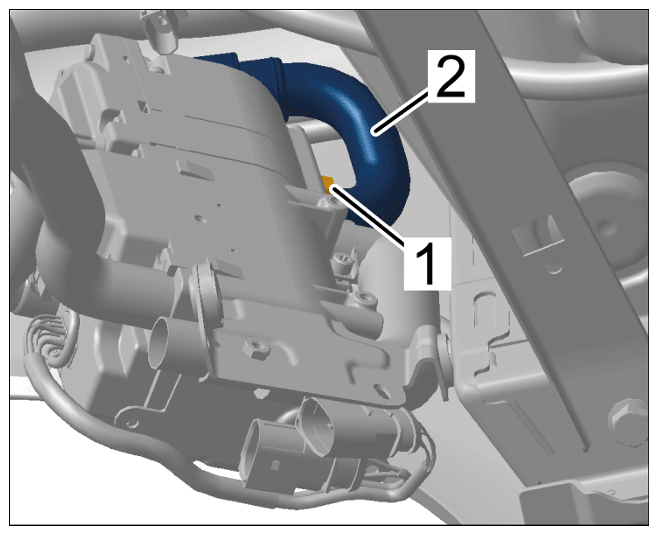

1. 3.1 Loosen clamp -1- using a suitable tool.
2. 3.2 Remove intake muffler -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing intake muffler
