Removing Control Unit For Auxiliary Heating Radio Receiver

WARNING: This page is about a different variant/trim than selected.
  1. Release and disconnect electric connections.

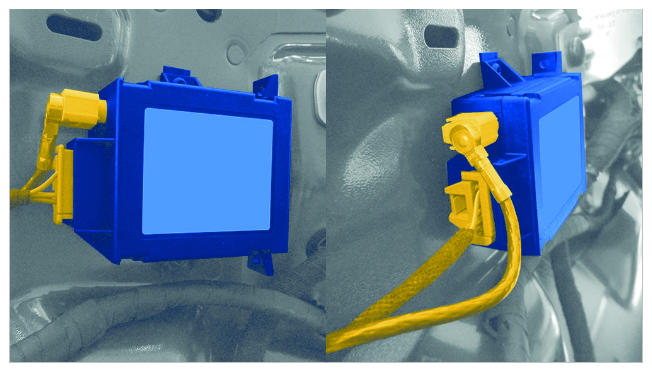

    G15875212Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit for auxiliary heating radio receiver

  2. Release and disconnect antenna connection.
  3. Loosen fastening nuts and remove control unit for auxiliary heating radio receiver.
