Installing High-Pressure Pump

Information

• Replace O-ring.

1. 1.1 Insert roller tappet into the cylinder head.
2. 1.2 Turn the crankshaft until the roller tappet is set to the lowest point.
3. 1.3 Fit union nut -1-  by hand.
   1. 1.3.1 Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting.
4. 1.4 Fit union nut -1-  by hand.
5. 1.5 Screw high-pressure pump -2-  into position.
6. 1.6 Fit union nut -3-  by hand.
   1. 1.6.1 Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting.
7. 1.7 Fit screws -4-  for the high-pressure pump.
8. 1.8 Fit screw -5-  with holder by hand.
9. 1.9 Press down the high-pressure pump and tighten screws -4-  .

   > Tightening torque 12 Nm (9 ftlb.)

10. 1.10 Tighten screw -5-  .

    > Tightening torque 9 Nm (6.5 ftlb.)

11. 1.11 Tighten union nuts -1-  and -3-  .

    > Initial tightening 8 Nm (6 ftlb.)

    > Final tightening + 50°

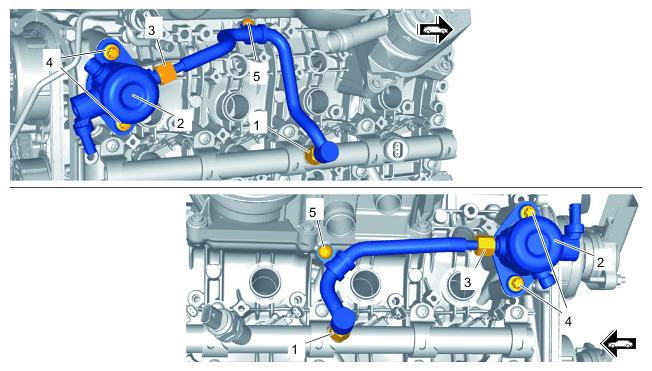

Fig 1: High-Pressure Lines Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for high-pressure lines

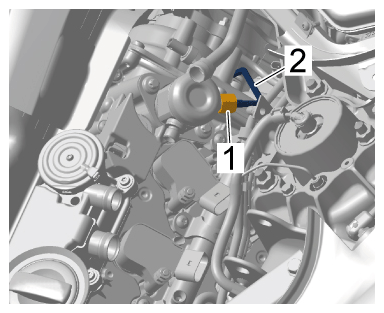

1. 3.1 Position high-pressure line -2-  .
2. 3.2 Fit union nut -1-  by hand.
3. 3.3 Tighten union nut -1-  > Initial tightening 8 Nm (6 ftlb.)  + > Final tightening + 50°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Union nut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

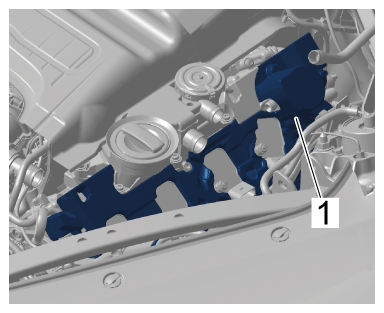

Sound absorber

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

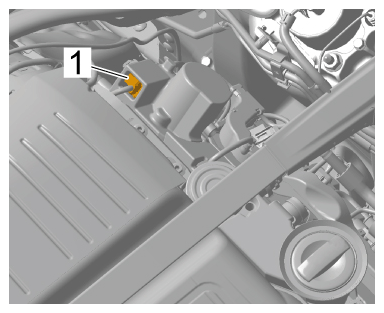

Electric plug connection

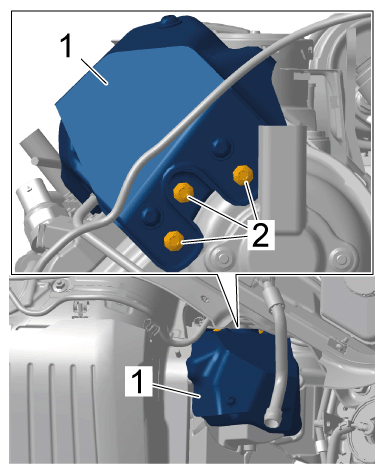

1. 6.1 Position heat shield -1-  .
2. 6.2 Screw in and tighten screws -2-  > Tightening torque 9 Nm (6.5 ftlb.)  + > Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat shield
