Removing Intake-Air Distributor

WARNING: This page is about a different variant/trim than selected.

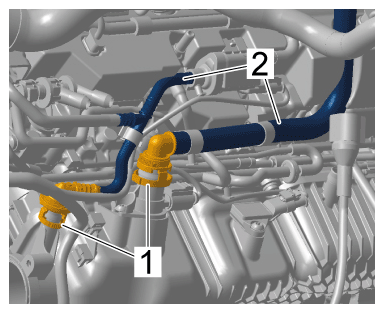

  1. Press release buttons -1-  on both sides of the vacuum hose connection pieces and pull off vacuum hoses -2-  .
    G15879479Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off vacuum hoses

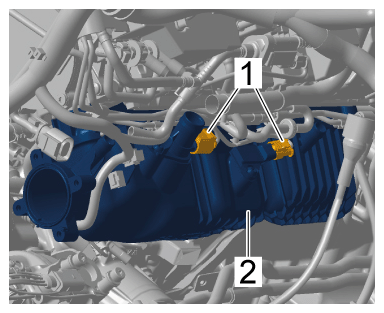

  2. Release and disconnect electric plug connections -1-  on intake-air distributor -2-  .
    G15879480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connections

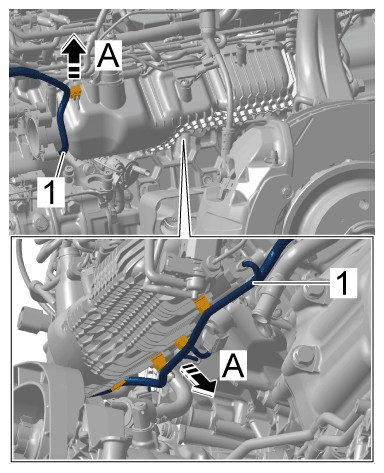

  3. Unclip electric wire harness -1-  from the intake-air distributor -arrows A-  .
    G15879481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping electric wire harness

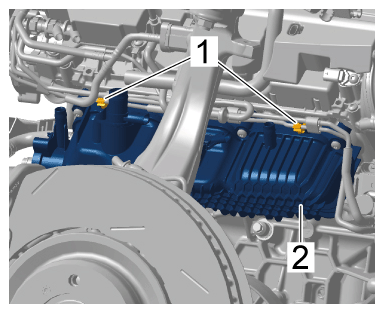

  4. Unclip line bracket -1-  from intake-air distributor -2-  .
    G15879482Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping line bracket

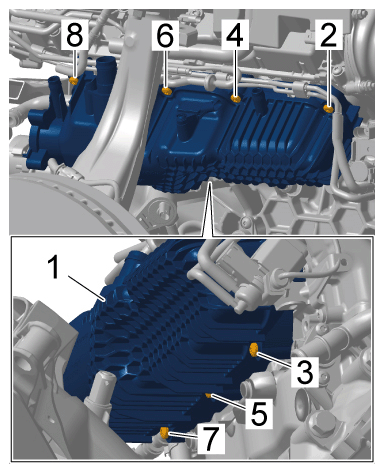

  5. Remove intake-air distributor -1-  .
    1. 5.1 Unscrew and remove screws -2 to 8-  .
    2. 5.2 Remove intake-air distributor -1-  .
    Fig 1: Intake-Air Distributor Screws Loosening Sequence
    G15879483Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing intake-air distributor
