Install Air-Cleaner Element

WARNING: This page is about a different variant/trim than selected.
  1. Insert air-cleaner element and check that it is seated correctly.
  2. Insert air cleaner cover.
  3. Tighten screws in the sequence -1 to 5-  .

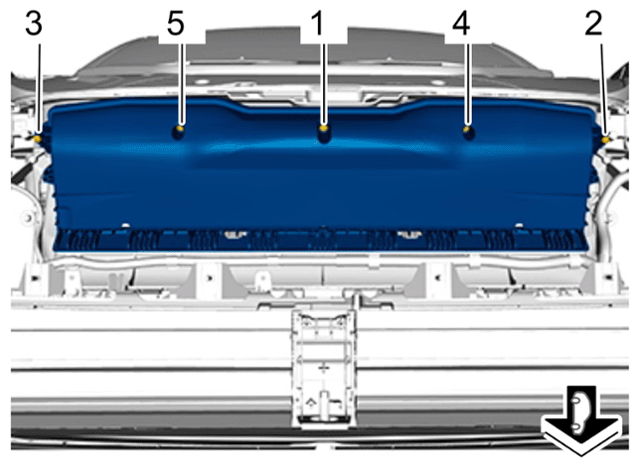

    Fig 1: Air Cleaner Housing Screws Tightening Sequence
    G15879418Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cleaner housing
