Subsequent Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Install heat shield -1- on final drive.
1. 1.1 Position heat shield -1- .
2. 1.2 Fit screws -2- and tighten to > Tightening torque 10 Nm (7.5 ftlb.) .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

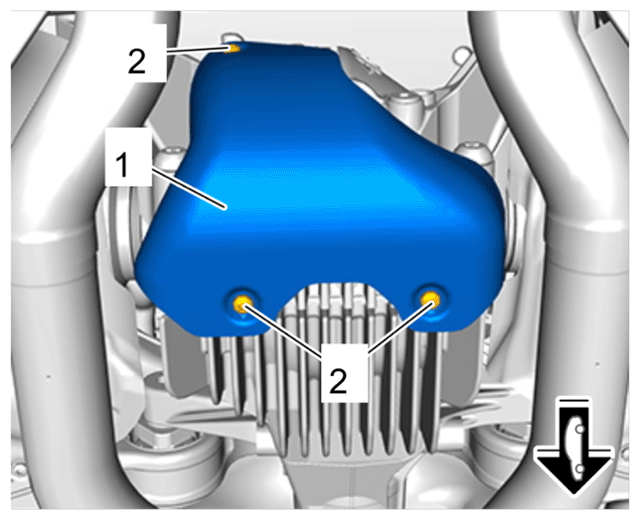

Heat shield on final drive, rear
Together with air suspension: Install compressor for levelling system.
> Removing and installing compressor for the levelling system
