Oil Adjustment Specifications For Front-Axle Final Drive (All-Wheel Final Drive) And Rear Axle Differential
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Model | Transmission | I-no. | First fill | Change quantity | Fill measurement under lower edge of filler screw |
|---|---|---|---|---|---|
| Front-axle final drive | |||||
| All | FA final drive 165 Shell TF0951 oil |
0.525 litres | 0.425 litres | Lower edge of filler screw | |
| Rear axle differential | |||||
| All | Rear axle diff. open SAF PD oil |
219 | 1.0 litre | 0.9 litres | > Fill quantity 6 mm +/- 2 mm |
| All | EM rear axle diff. SAF EH mod. LV oil |
220/221 | 1.3 litres | 1.2 litre | > Fill quantity 6 mm +/- 2 mm |
| EM: Electromechanical rear-diff. lock/219 without rear-diff. lock/220/221 with rear-diff. lock | |||||
Information
Use only oil approved by Porsche.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- Secure vehicle to prevent it rolling away.
- To check transmission oil the vehicle must be horizontal.
- Place a drip pan underneath.
- Unscrew oil drain plug -2-
and drain oil.

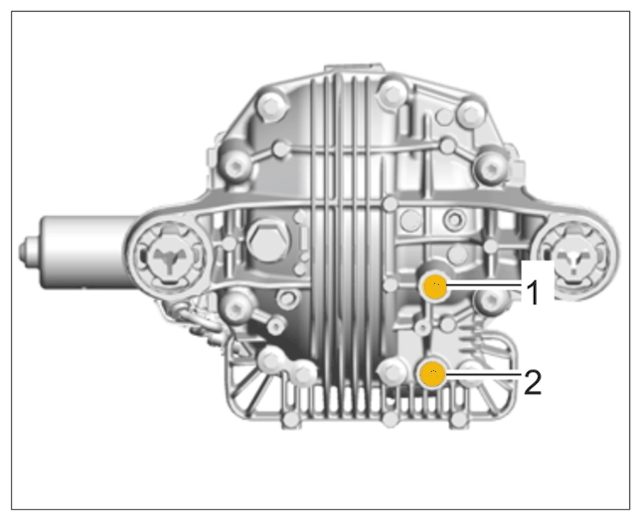

Oil inspection and filler plug
- Screw in new oil drain plug -2- and tighten to > Tightening torque 35 Nm .
- Unscrew oil inspection plug.
- Use > VAS 6563 - Manual metering pumps, Porsche set
to fill oil into the inspection plug opening -1-
.
- 5.1 The oil fill quantity is specified in the table Oil filling specifications for front-axle final drive and rear axle differential.
- 5.2 The oil level in the final drive can be measured using an angled piece of wire, for example.
Oil inspection and filler plug
- Screw in new oil inspection plug -1- and tighten to > Tightening torque 35 Nm .
