Removing Transverse Lock Servo Motor

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove protective plate for drive shaft at the left -1-  .
    G15888232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for protective plate for drive shaft at the left

    1. 1.1 Unscrew fastening screws -2-  .
  2. Unscrew fastening screws -1-  on servo motor for rear-differential lock -2-  .

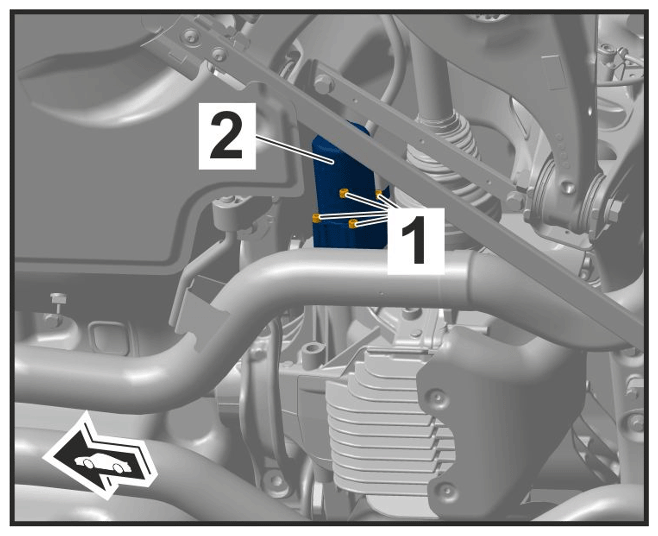

    G15888233Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for servo motor for rear-differential lock

  3. Pull servo motor for rear-differential lock -1-  off the flange on the final drive, tilt it slightly -arrow A-  and release and disconnect electric connector -2-  .

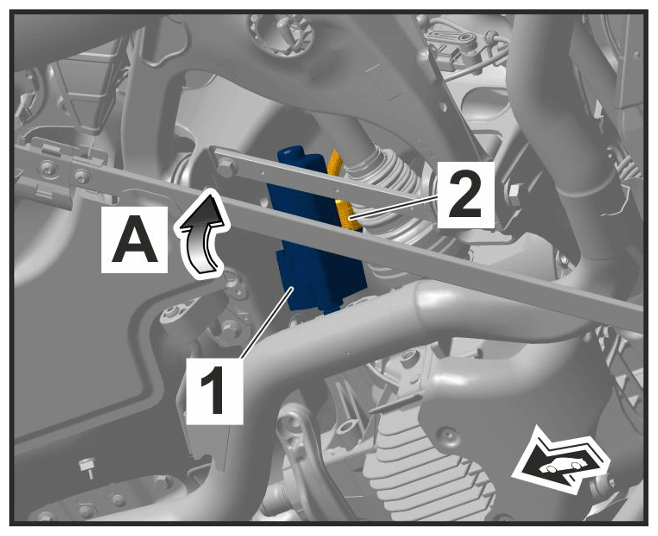

G15888234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connector on servo motor for rear-differential lock
