Installing Transverse Lock Servo Motor

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

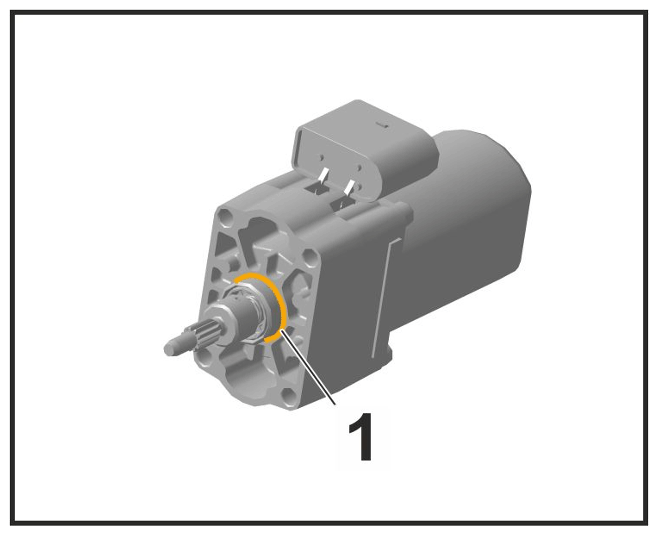

Replace sealing ring -1- on servo motor for rear-differential lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing ring on servo motor for rear-differential lock

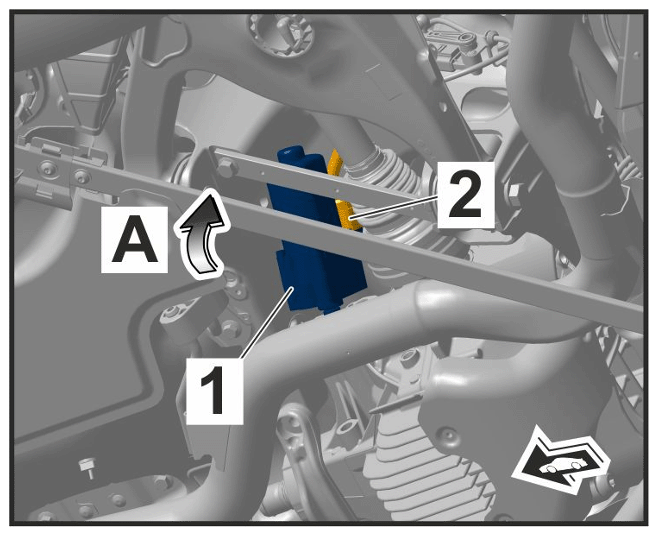

Connect and lock electric connector -2- on servo motor for rear-differential lock -1- and insert servo motor for rear-differential lock into the final drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connector on servo motor for rear-differential lock
Tighten fastening screws -1- on servo motor for rear-differential lock -2- .
> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for servo motor for rear-differential lock
Install protective plate for drive shaft at the left -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for protective plate for drive shaft at the left
1. 4.1 Tighten fastening screws -2- .
  > Tightening torque 8 Nm (5.9 ftlb.)
