Removing Front Roof Console (SOS Button)

  1. Switch off ignition and move remote control (hand-held transmitter) at least 2 meters away from the vehicle.

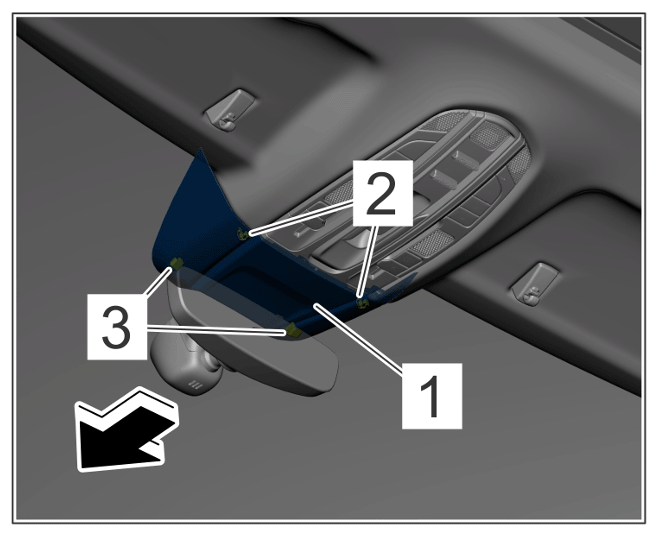

  2. Unclip cover on camera -1-  by pulling it forward -Arrow-  (-2-  ), slide it out of the guide lugs -3-  and remove it.
    G15873716Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on camera

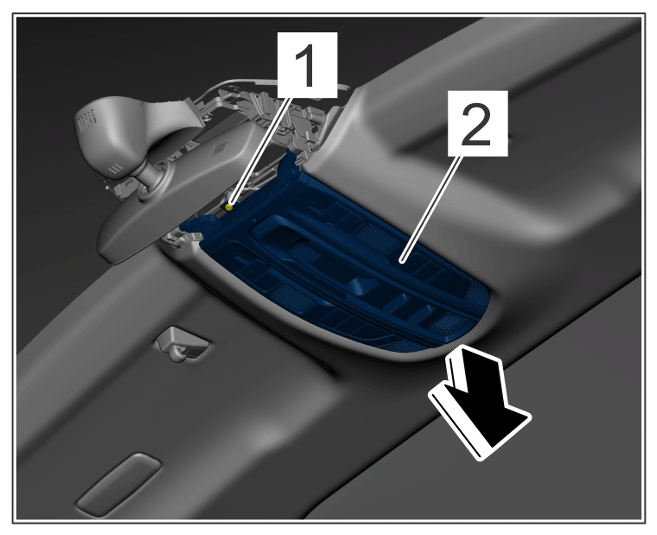

  3. Unscrew the screw -1-  and unclip the front roof console (SOS button) -2-  at the back. -Arrow-
    G15873717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front roof console (SOS button)

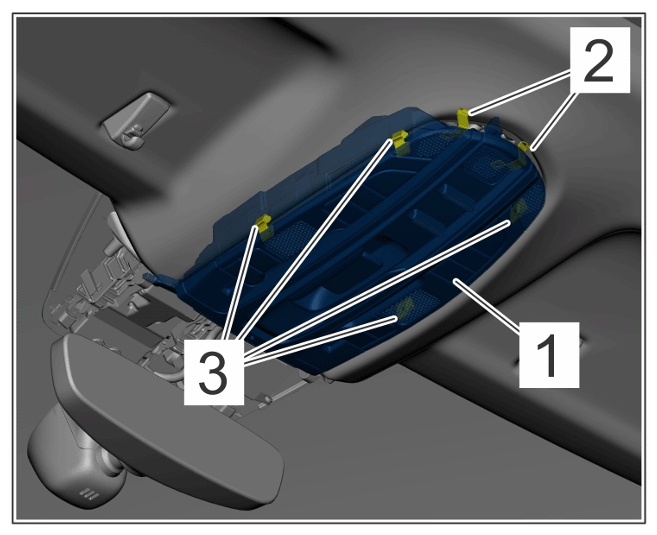

  4. Hang the front roof console (SOS button) -1-  on sheet metal clips -2-  at the rear and unclip the locking lugs -3-  at the side.
    G15873718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs and sheet metal clips

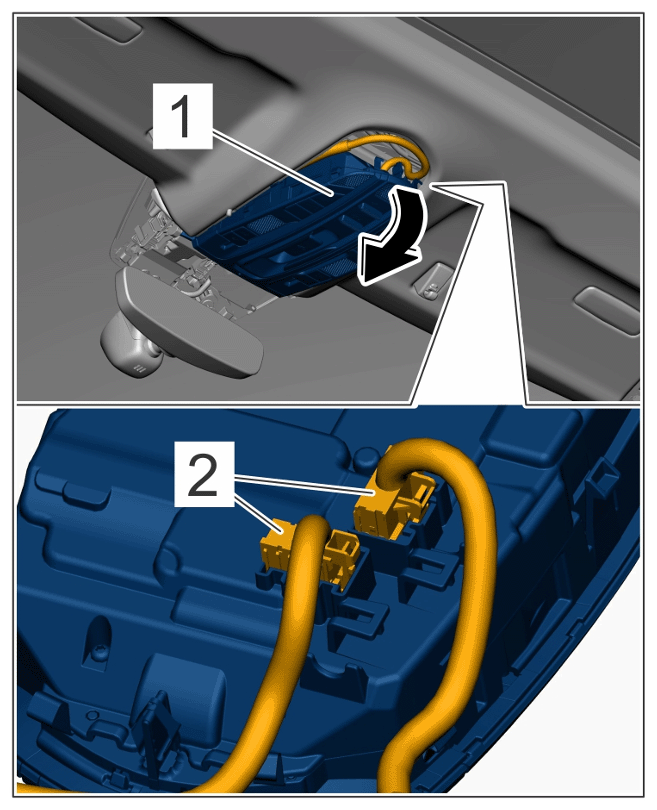

  5. Swivel front roof console (SOS button) -1-  down and release and disconnect electric plug connections -2-  .
    G15873719Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  6. Remove the front roof console (SOS button).
