Removing Luggage Compartment Trim Panel (Luggage Compartment Cover) At The Lock Carrier

  1. Unscrew screws -2-  and -3-  and unclip luggage compartment trim panel (luggage compartment cover at the lock carrier -1-  using a suitable tool.

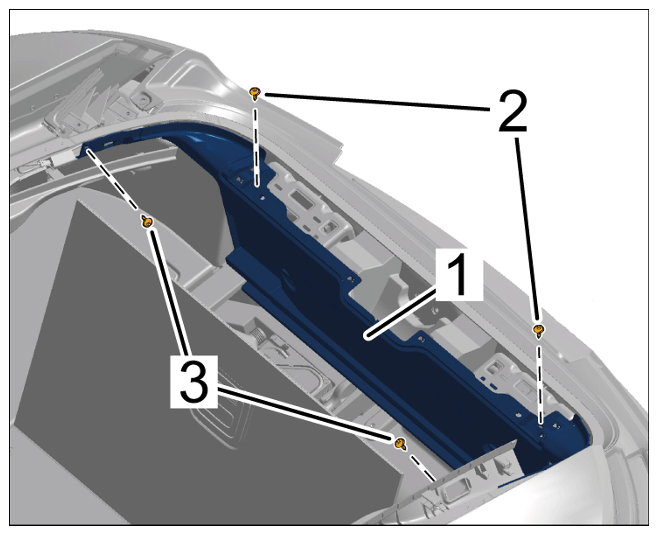

    G15873580Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping luggage compartment trim panel (luggage compartment cover) at the lock carrier
