Hydraulic Control Unit For Transmission, Sensors

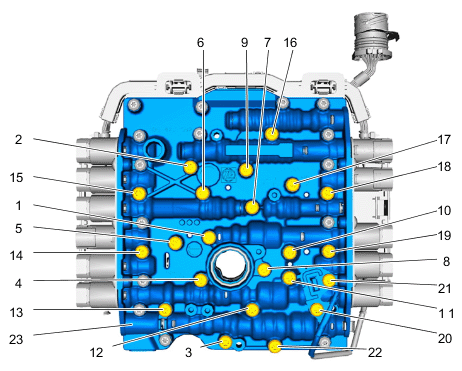

Fig 1: Control Mechanism For Transmission Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control mechanism for transmission

1 to 22	Screws for control mechanism for transmission - observe tightening sequence > Initial tightening 5 Nm (3.5 ftlb.) > Torque angle 180°
23	Control mechanism for transmission

Pressure sensors in hydraulic space > Tightening torque 12 Nm (9 ftlb.)

Location	Description	Type	Basic value	Tolerance
Screws securing wire harness to transmission control mechanism	M5 x 16	Tightening torque	5 Nm (3.5 ftlb.)

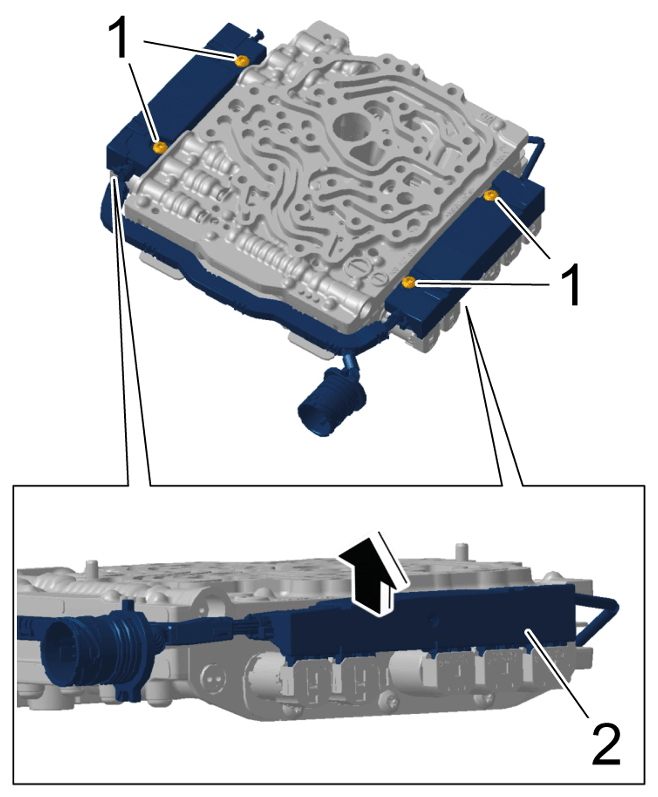

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
