Front Drive Shaft Sealing Ring: Notes
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

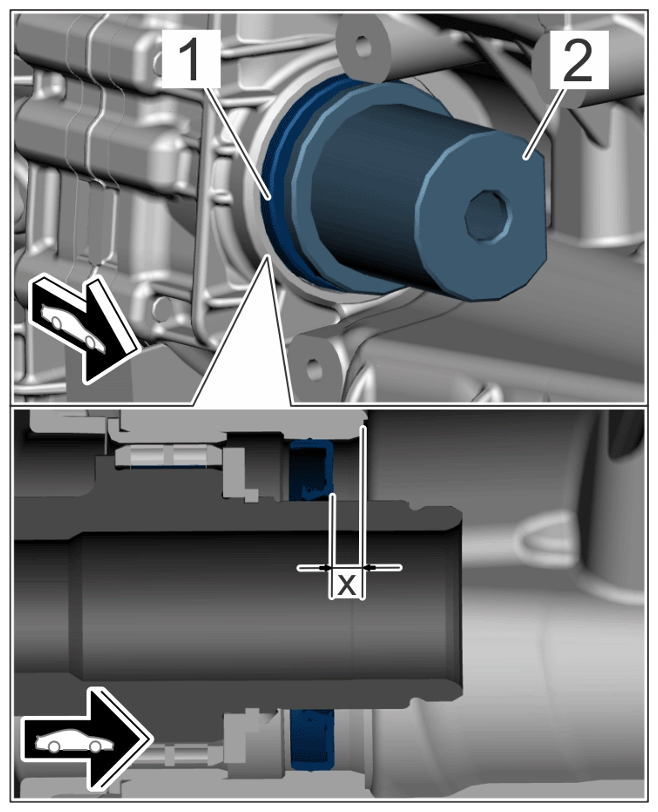

| Press-in depth of front drive shaft sealing ring |
Item x |
press-in depth |
6.6 mm |
+/- 0.3 mm |
 Courtesy of PORSCHE
Press-in depth sealing ring |
