Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Screw for retaining strip with neat protection	item 5	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for retaining strip on rear light
Nut on retaining strip with heat protection	Item 6	Tightening torque	9 Nm (6.6 ftlb.)

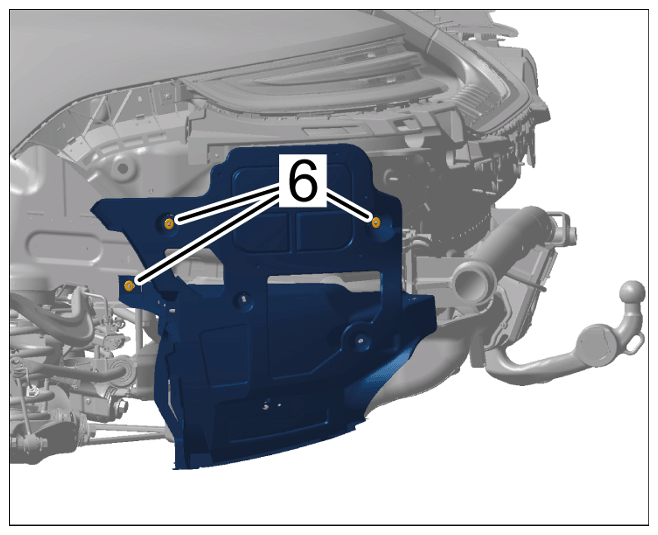

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for holder with heat protection
Speed nut on heat shield		Tightening torque	2.5 Nm (1.75 ftlb.)
Screw for heat shield		Tightening torque	2.5 Nm (1.75 ftlb.)
For securing heat shield for rear silencer	Speed nut/plastic nut	Tightening torque	2.5 Nm (1.75 ftlb.)
