Removing DME Control Unit

WARNING: This page is about a different variant/trim than selected.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

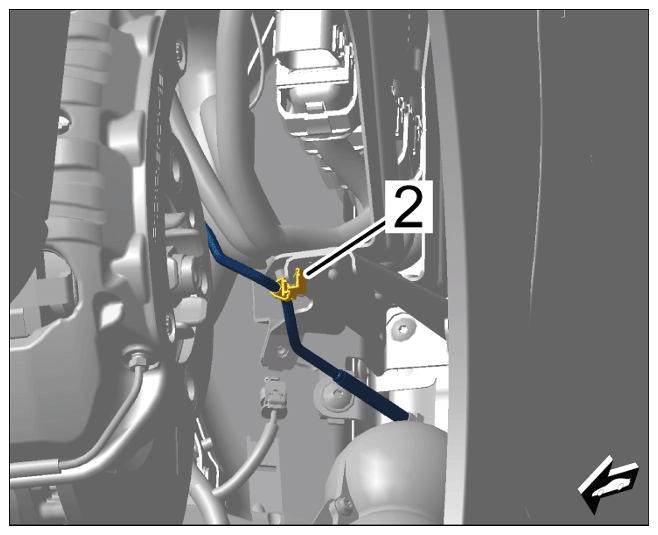

Remove retaining clip -2- from DME control unit holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing line clip

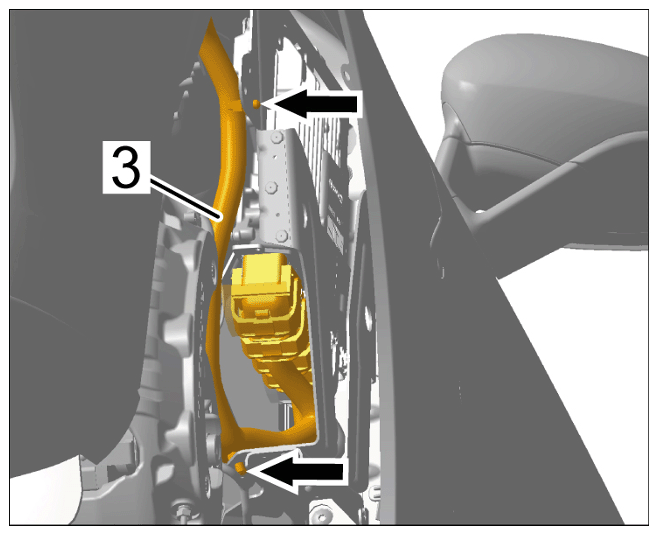

Remove cable holder for electric wire harness -3- and unclip wire harness from DME control unit holder -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric wire harness

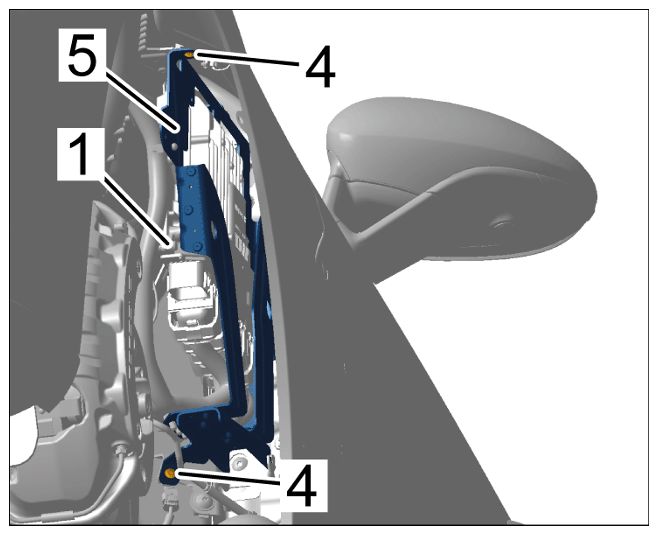

Unscrew screws -4- and guide holder -5- with DME control unit -1- out of the bracket.
IMPORTANT: Danger of injury from sharp edges on holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

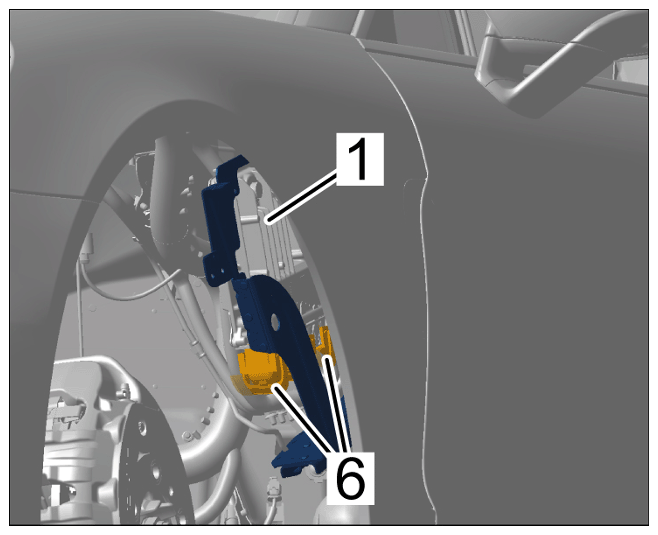

Release and disconnect electric plug connections -6- on the DME control unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections

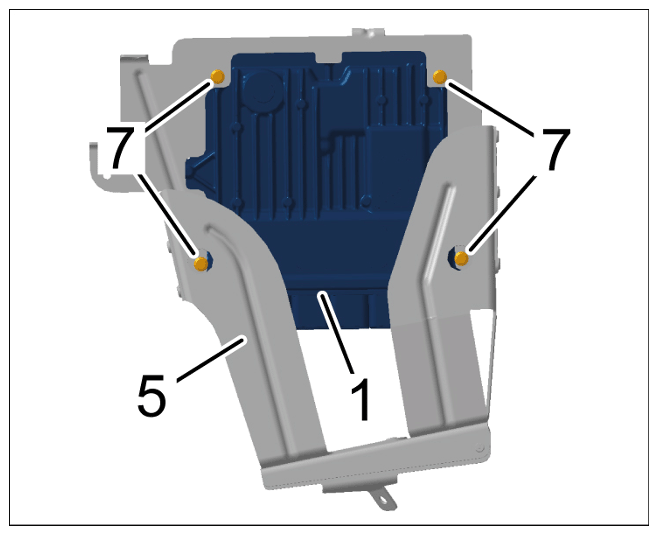

Unscrew screws -7- and remove DME control unit -1- from the holder -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing DME control unit
