Installing Intake-Air Distributor
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order.
- Check seal and replace it if necessary.
- Screw in and tighten screws in the specified sequence -2 to 8-
> Tightening torque 9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

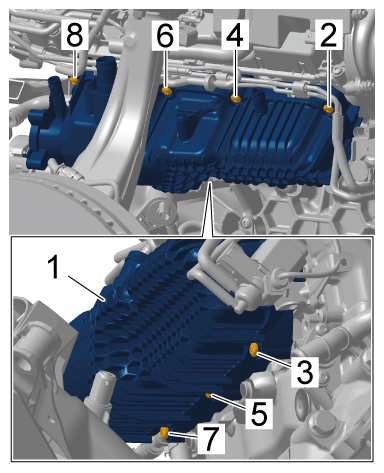

Screwing in and tightening screws
