Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Remove engine cover.
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V8 BITURBO)
- Loosen front apron.
> 631519 REMOVING AND INSTALLING FRONT APRON

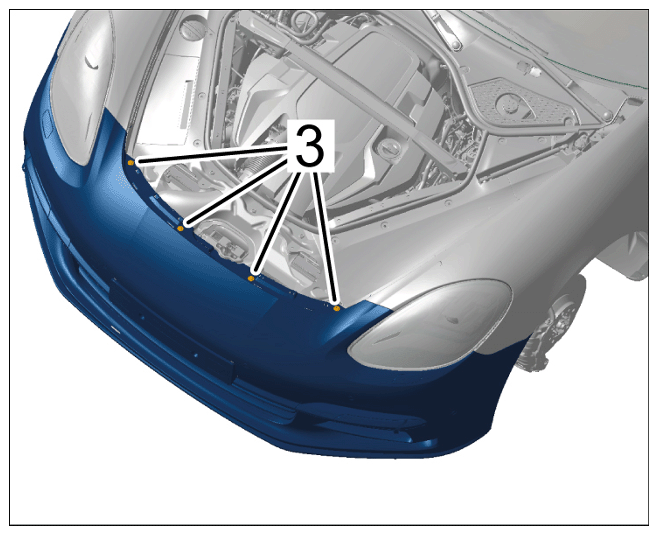

- 2.1 Unscrew screws -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing front screw at the top

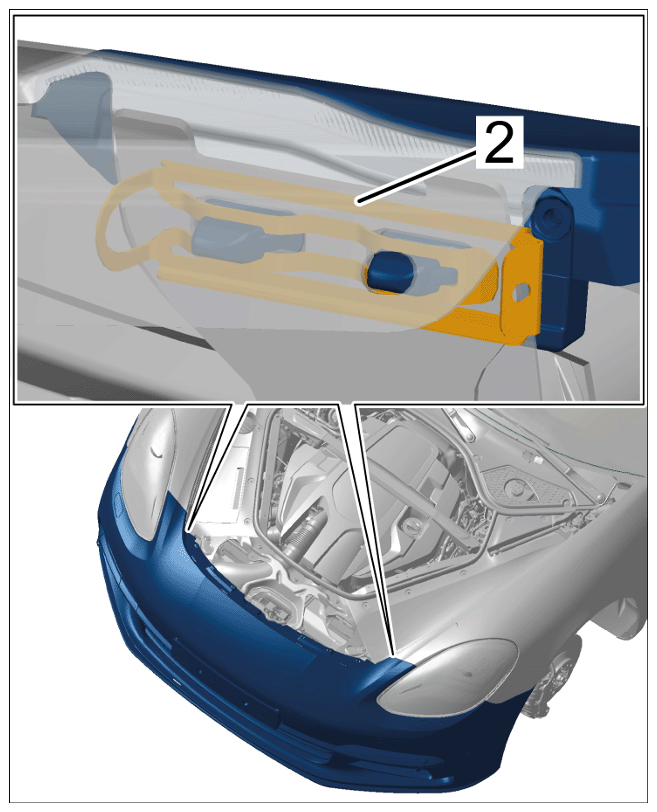

- 2.2 Pull safety clips -2-
at the left and right off the guide pins using > T10118 - assembly tool
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulling off safety clips

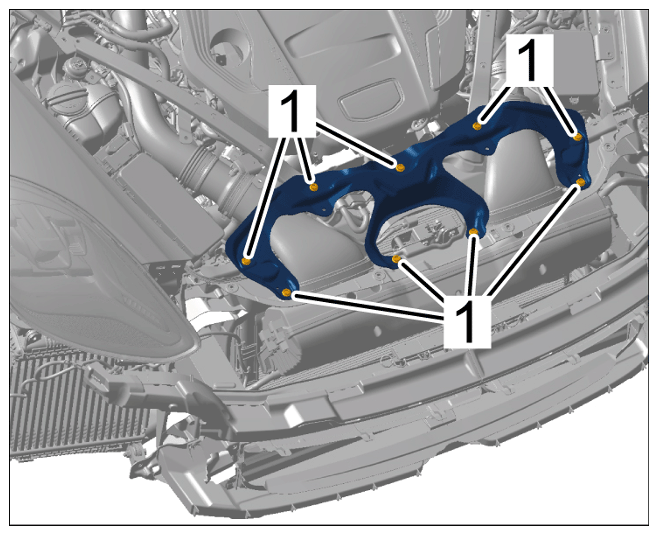

- Unscrew screws -1-
using > VAS 6928 - Socket wrench set, 39-piece
and remove reinforcement.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing reinforcement
