Preliminary Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition and remove ignition key.
Remove strut.
> WM, 408619 REMOVING AND INSTALLING STRUT (A-STRUT)
Remove engine cover (design cover).
> WM, 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)
Loosen torque support at the bracket and swivel it upwards.
> 103719 REMOVING AND INSTALLING TORQUE SUPPORT
Remove torque support bracket.

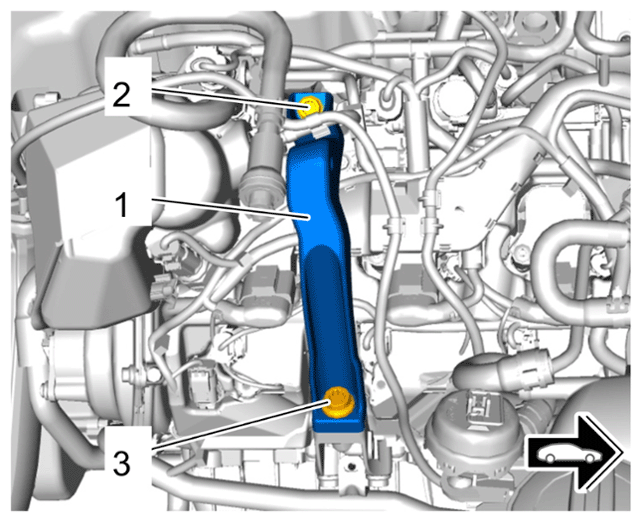

1. 5.1 Unscrew screws -2- and -3- and loosen and guide out bracket for torque support -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Torque support bracket
