Technical Values
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

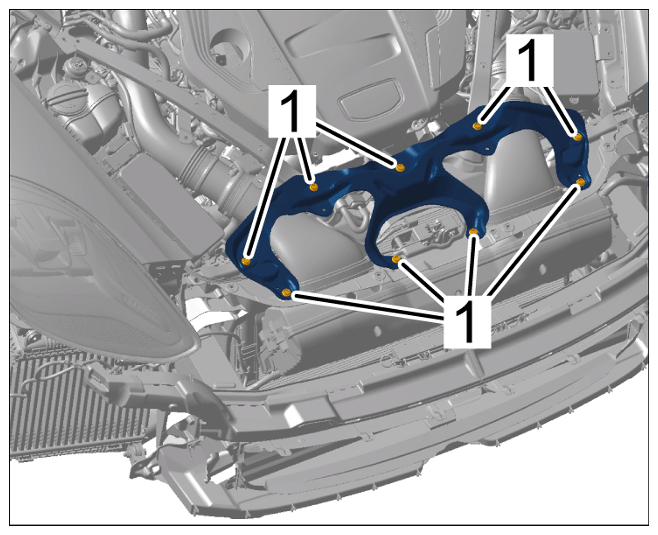

| Screw securing reinforcement to module carrier | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Reinforcement on module carrier |
|||||
| Air-cleaner cowl to air cleaner | Tightening torque | 5 Nm (3.5 ftlb.) | |||
| Screw securing air cleaner housing to lock carrier | M6 x 14 | Tightening torque | 4.5 Nm (3.25 ftlb.) |
