Preliminary Work
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Together with air suspension: Loosen compressor for levelling system and suspend it at the side.
> Removing and installing compressor for the levelling system
- Remove heat shield -1-
on final drive.
- 2.1 Unscrew screws -2-
and remove heat shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

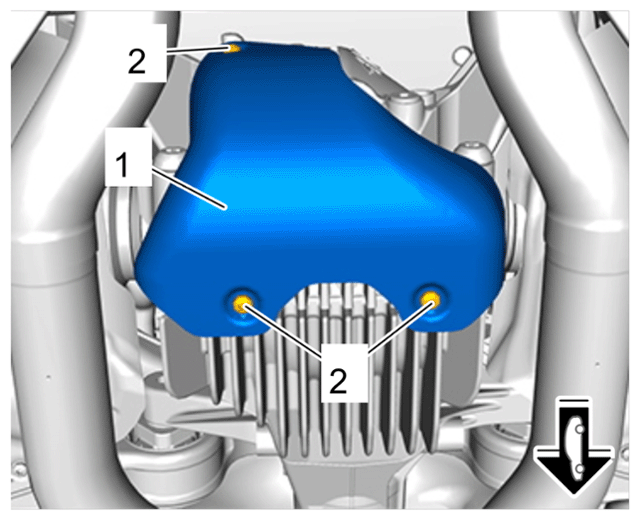

Heat shield on final drive, rear
