Checking Oil For Final Drive

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Secure vehicle to prevent it rolling away.
To check transmission oil the vehicle must be horizontal.

Unscrew oil inspection plug -1- .

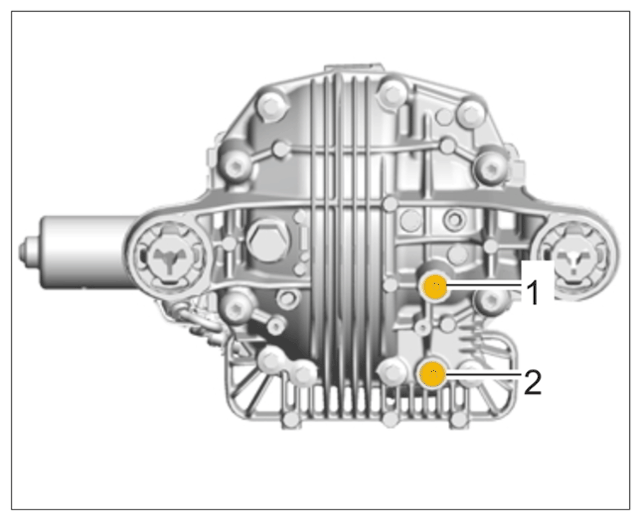

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil inspection and filler plug
Check oil level in the final drive.
1. 2.1 The oil level is specified in the table Oil adjustment specifications for front-axle final drive and rear axle differential.
2. 2.2 The oil level in the final drive can be measured using an angled piece of wire, for example.
Fit oil inspection plug -1- .
1. 3.1 Use a new oil inspection plug -1- .
2. 3.2 Fit oil inspection plug -1- and tighten to > Tightening torque 35 Nm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil inspection and filler plug
