Checking And Topping Up Oil For All-Wheel Final Drive

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Place a drip pan underneath.
Unscrew and remove oil filler screw -1- .
Information

Use only oil approved by Porsche.
Use > VAS 6563 - Manual metering pumps, Porsche set to fill in oil up to the lower edge of the oil filler screw opening -1- .
Information

The help of another person is required.
With the inspection opening open, turn both front wheels evenly several times.¹⁾
¹⁾ The oil level depends on the differential position.
Remove emerging oil.
Screw in oil filler screw -1- with a new sealing ring and tighten it > Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

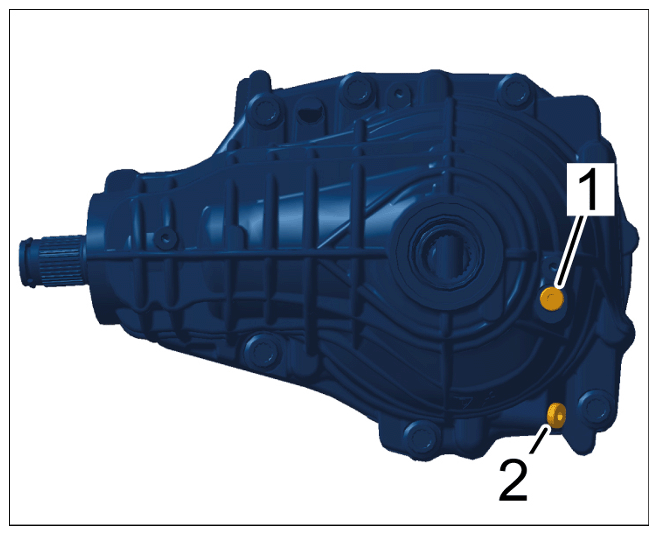

Oil inspection plug
