Disassembling Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wire harness for tailgate.

    > 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE

  2. Remove rear window.

    > 648619 REMOVING AND INSTALLING REAR WINDOW

  3. Remove rear logo.

    > WM, 665055 REPLACE LOGO REAR

  4. Remove antenna control unit.

    > 918619 REMOVING AND INSTALLING ANTENNA CONTROL UNIT

  5. Remove antenna amplifier.

    > 918419 REMOVING AND INSTALLING ANTENNA AMPLIFIER

  6. Remove control unit for auxiliary heater.

    > WM, 821819 REMOVING AND INSTALLING AUXILIARY HEATING CONTROL UNIT

  7. Remove antenna for auxiliary heater.

    > WM, 820819 REMOVING AND INSTALLING ANTENNA FOR AUXILIARY HEATING

  8. Only for USA vehicles (C02):

    Remove SDARS antenna.

    > 913819 REMOVING AND INSTALLING SDARS ANTENNA

  9. Remove control unit for rear lid.

    > 5568 REAR LID CONTROL UNIT

  10. Remove motor for closing aid.

    > 587219 REMOVING AND INSTALLING MOTOR FOR CLOSING AID

  11. Remove adjusting element for rear lid -2-  .

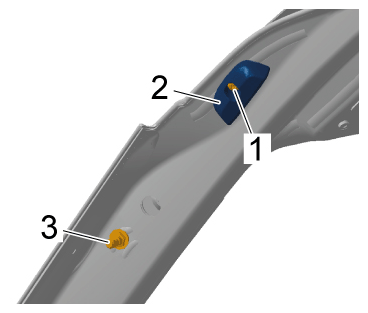

    G15863050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rubber stop

    1. 11.1 Unscrew and remove screw -1-  .
    2. 11.2 Remove adjusting element for rear lid -2-  .
  12. Unscrew and remove ball joint -3-  .
    G15863051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rubber stop

  13. Unscrew screws -5-  and pull water drain sleeves -6-  out of the opening in the panel.

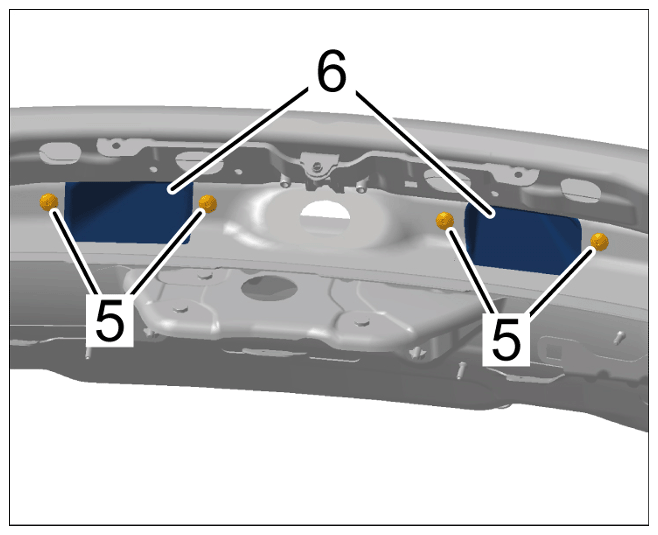

    G15863052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing water drain sleeves

  14. Remove moulded part -7-  from opening in the panel and remove seal -8-  .

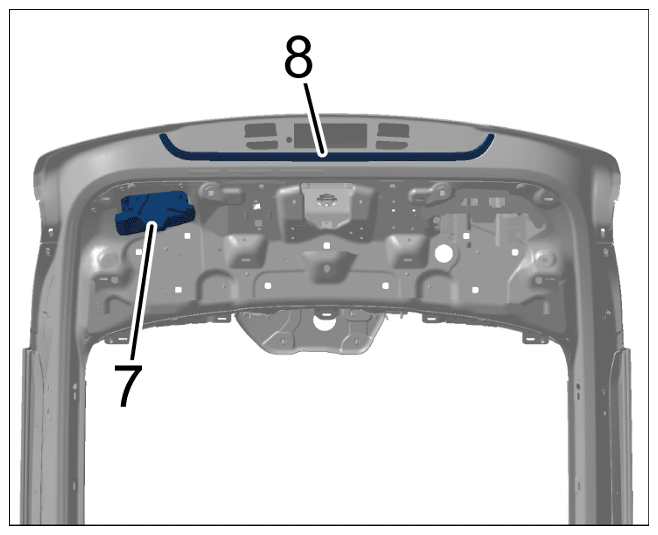

    G15863053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing moulded part and seal

  15. Pull sleeves -9-  out of the openings in the panel and remove mounting for rubber stop -10-  .
    1. 15.1 Pull sleeves -9-  out of the openings in the panel.
    2. 15.2 Loosen mounting for rubber stop -10-  by turning it 90°.
    3. 15.3 Remove mounting for rubber stop -10-  .

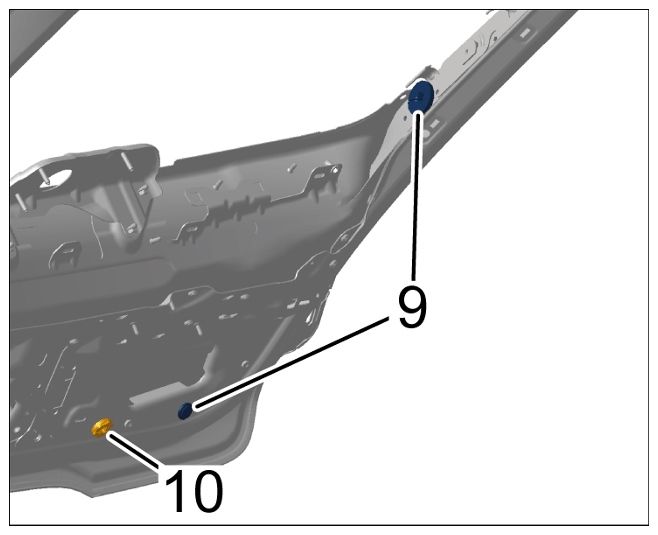

    G15863054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing sleeves and mounting for rubber stop

  16. Unscrew nuts -11-  and remove retaining bracket for wiper motor -12-  .

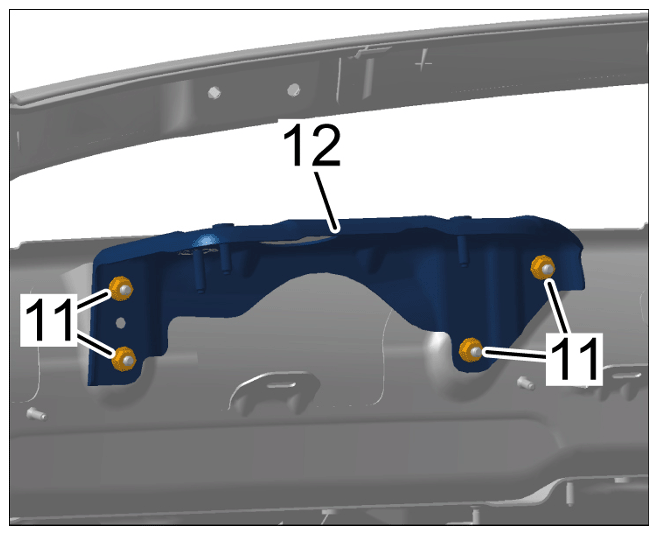

G15863055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing retaining bracket for wiper motor
