Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Ball clamp securing exhaust system to exhaust pipe		Tightening torque	35 Nm (26 ftlb.)
Fastening screws securing exhaust system to body	M8	Tightening torque	23 Nm (17 ftlb.)
Fastening screws for rear silencer strut	M8 x 25	Tightening torque	23 Nm (17 ftlb.)
Fastening screws securing rear silencer to body	M8 x 22	Tightening torque	23 Nm (17 ftlb.)
Screws for reinforcement strut on tunnel bridge	Items 1 and 2	Tightening torque	50 Nm (37 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

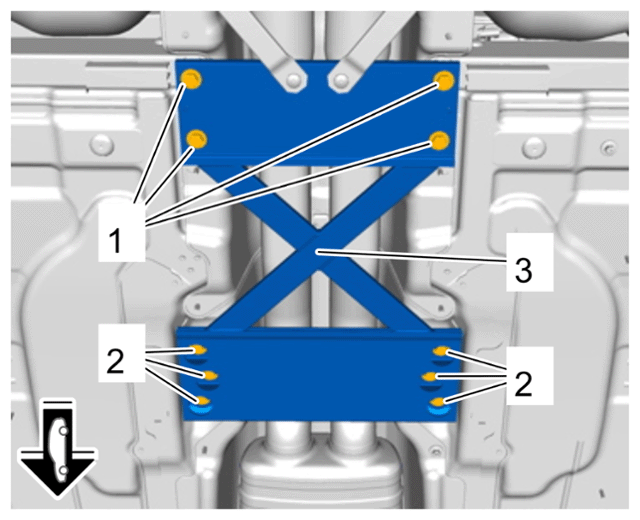

Screws for reinforcement strut on tunnel bridge
