Installing Oil Level Sensor

1. Replace sealing ring for oil level sensor.

   Information

   Panamera 4S (97A) only:

   Replace screws.

2. Insert oil level sensor -2-  by turning it carefully and screw in screws -3-  .

   Tightening torque for Panamera Turbo (97A): > Tightening torque 9 Nm (6.5 ftlb.)

   Tightening torque for Panamera 4S Diesel (97A): > Tightening torque 9 Nm (6.5 ftlb.)

   Tightening torque for Panamera 4S (97A): > Tightening torque 9 Nm (6.5 ftlb.)  + >

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

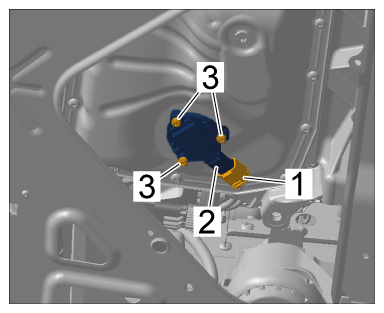

   Installing oil level sensor

3. Plug in electric plug connection -1-  on oil level sensor -2-  until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting electric plug connection
