WM, 170301 Checking Engine Oil Pressure: Tools
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

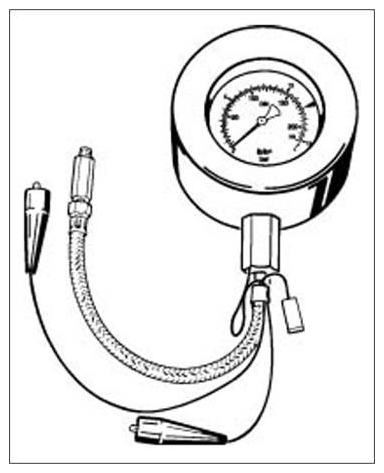

| Oil Pressure Tester | Vehicle-specific workshop equipment | > V.A.G 1342 |
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Engine oil pressure at idle speed | Min. pressure | Overpressure | 0.9 bar | ||
| Engine oil pressure at 1, 500 rpm | Minimum pressure | Overpressure | 1.3 bar |
