Preliminary Work

1. Together with air suspension: Loosen compressor for levelling system and suspend it at the side.

   > Removing and installing compressor for the levelling system

2. Remove heat shield -1-  on final drive.
   1. 2.1 Unscrew screws -2-  and remove heat shield -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

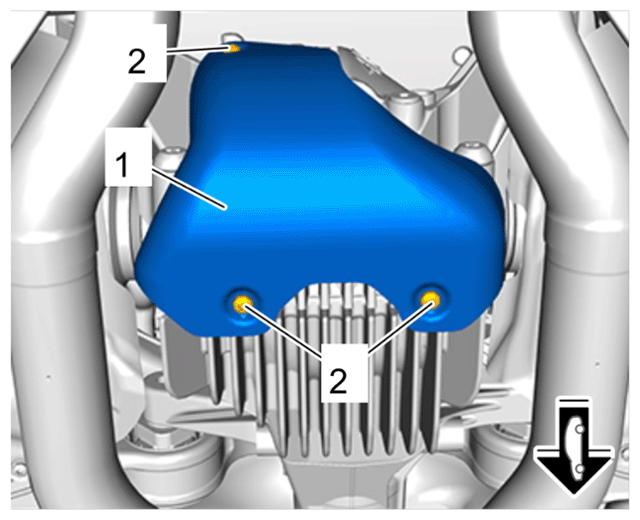

Heat shield on final drive, rear
