Oil Adjustment Specifications For Front-Axle Final Drive (All-Wheel Final Drive) And Rear Axle Differential
| Model | Transmission | I-no. | First fill | Change quantity | Fill measurement under lower edge of filler screw |
|---|---|---|---|---|---|
| Front-axle final drive | |||||
| All | FA final drive 165 Shell TF0951 oil |
0.525 litres | 0.425 litres | Lower edge of filler screw | |
| Rear axle differential | |||||
| All | Rear axle diff. open SAF PD oil |
219 | 1.0 litre | 0.9 litres | > Fill quantity 6 mm +/- 2 mm |
| All | EM rear axle diff. SAF carbon mod. oil |
220/221 1.3 | litres 1.2 | litre | > Fill quantity 6 mm +/- 2 mm |
| EM: Electromechanical rear-diff. lock/219 without rear-diff. lock/220/221 with rear-diff. lock | |||||
Information
Use only oil approved by Porsche.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.

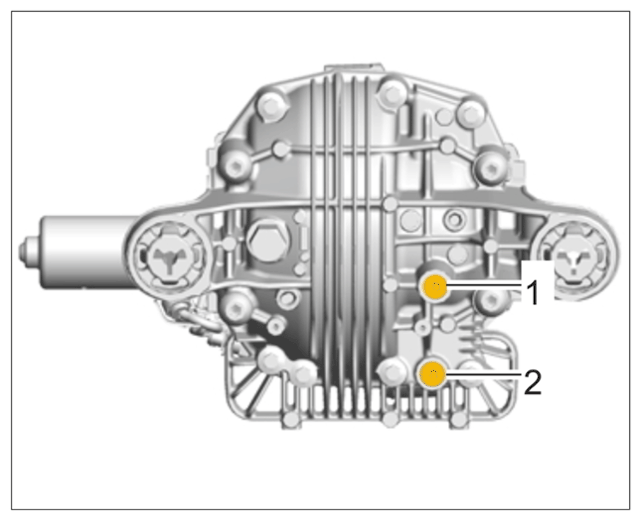

- Unscrew oil inspection plug -1-
.
Oil inspection and filler plug
- Use > VAS 6563 - Manual metering pumps, Porsche set
to fill oil into the inspection plug opening -1-
.
- 2.1 The oil fill quantity is specified in the table Oil adjustment specifications for front-axle final drive and rear axle differential.
- 2.2 The oil level in the final drive can be measured using an angled piece of wire, for example.
- Fit new oil inspection plug -1-
and tighten to > Tightening torque 35 Nm
.
Oil inspection and filler plug
