Removing All-Wheel Final Drive

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

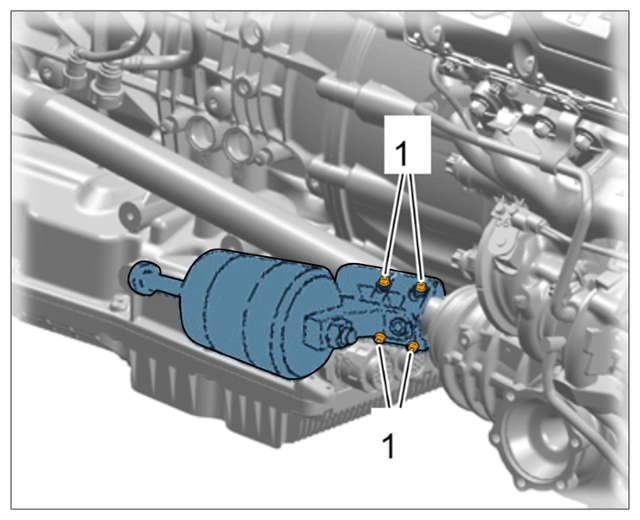

Fit impact puller.

1.1 > 9799 - Impact puller must be fitted at the groove in the connecting shaft using four screws -1- .

G15888574

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting tool (similar to illustration)

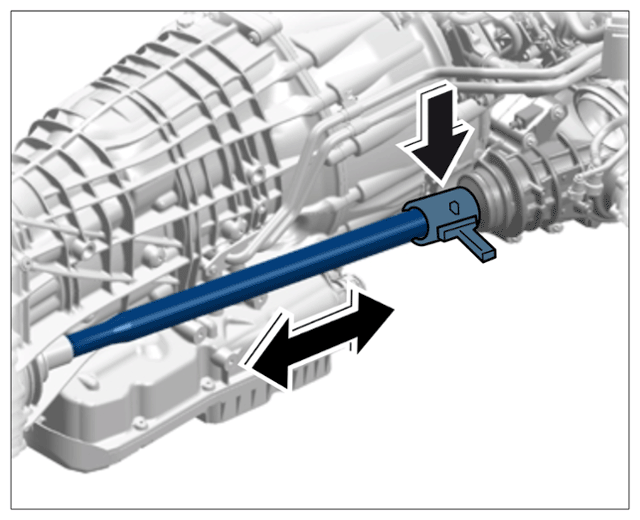

Loosen connecting shaft.

2.1 Use > 9799 - impact puller to remove connecting shaft from all-wheel final drive -arrow- .

G15888575

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing and fitting connecting shaft (similar to illustration)

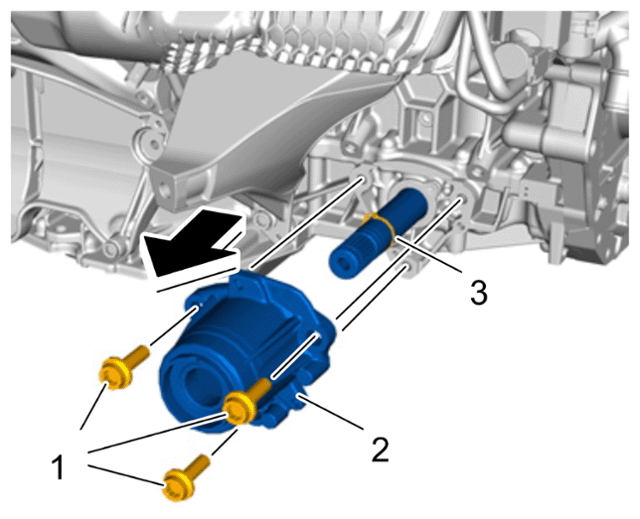

Remove console.

3.1 Unscrew fastening screws -1- and remove console -2- .

3.2 Remove circlip -3- .

G15888576

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Final drive console

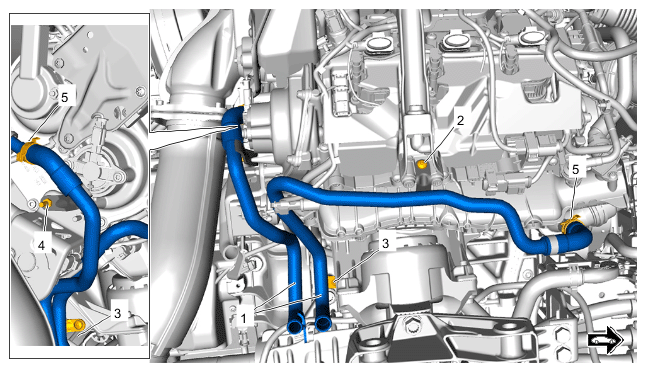

Remove coolant lines -1- .

4.1 Unclip positive cable at three places.
4.2 Unscrew screws -2 and 3- and nut -4- .
4.3 Loosen clamps -5- .

4.4 Remove coolant lines -1- .

G15888577

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines

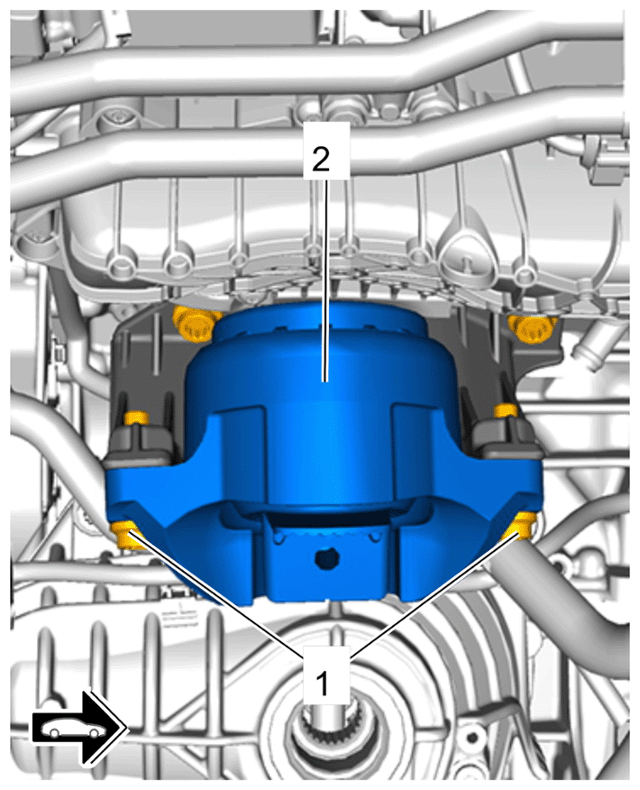

Remove right engine mount -2- .

5.1 Unscrew screws -1- and remove engine mount -2- .

G15888578

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right engine mount

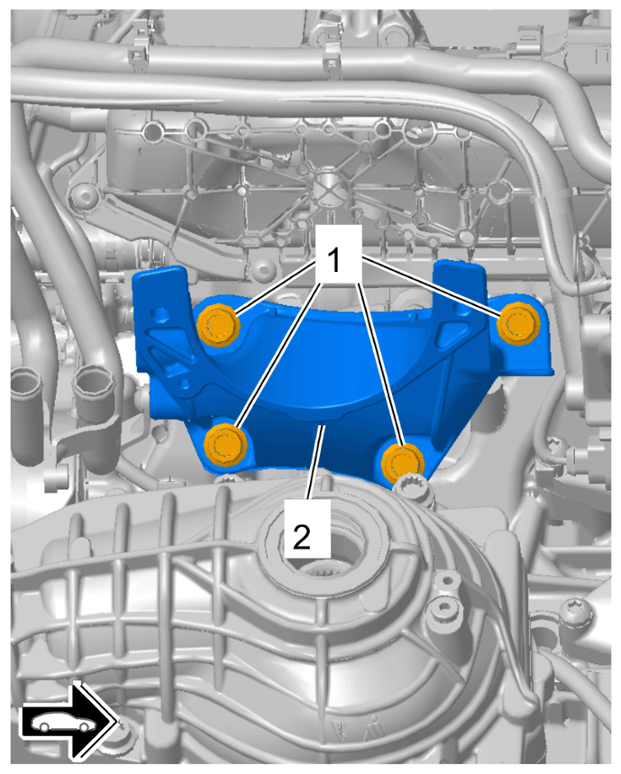

Remove right engine carrier -2- .

6.1 Unscrew screws -1- and remove engine carrier -2- .

G15888579

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right engine carrier

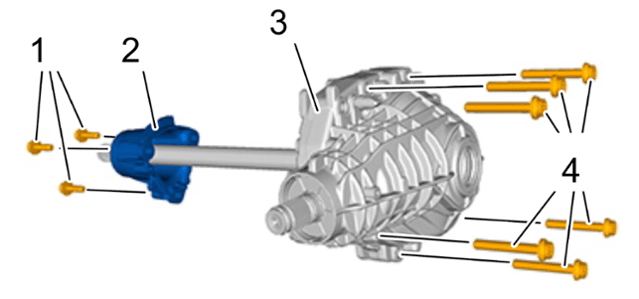

Remove all-wheel final drive.
1. 7.1 Unscrew screws -4- and remove all-wheel final drive -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle final drive
