Installing Transverse Lock Servo Motor

Replace sealing ring -1- on servo motor for rear-differential lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

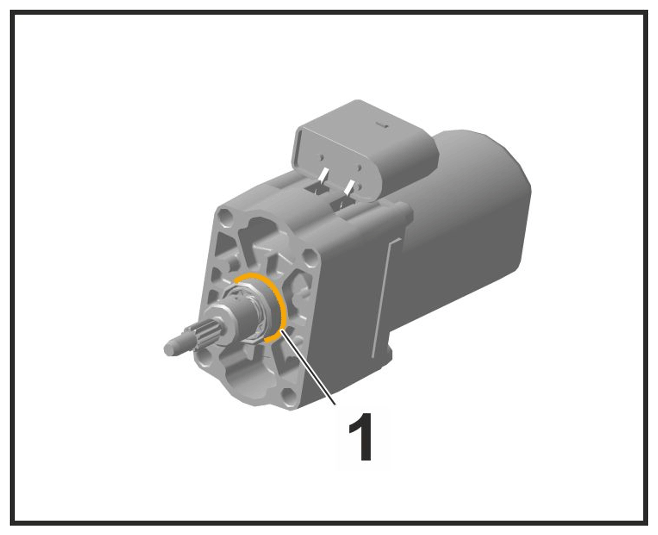

Sealing ring on servo motor for rear-differential lock
Connect and lock electric connector -2- on servo motor for rear-differential lock -1- and insert servo motor for rear-differential lock into the final drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

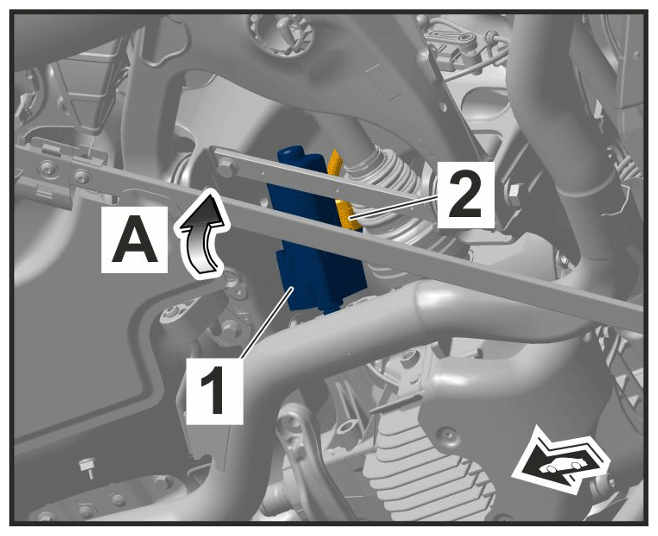

Electric connector on servo motor for rear-differential lock
Tighten fastening screws -1- on servo motor for rear-differential lock -2- .
> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

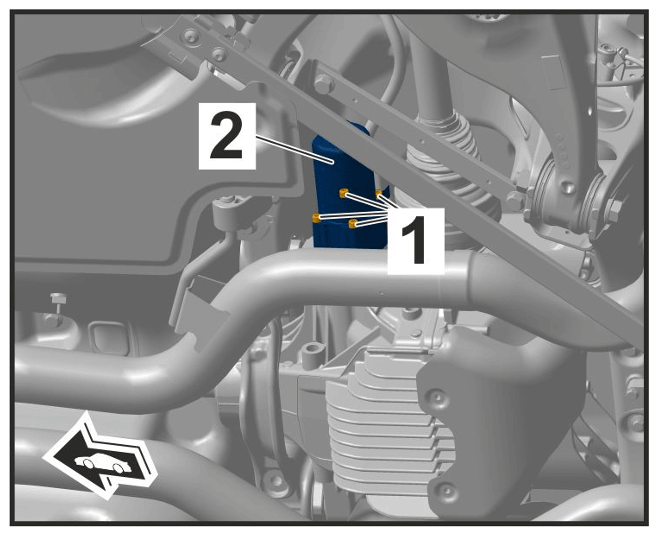

Mounting for servo motor for rear-differential lock
Install protective plate for drive shaft at the left -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for protective plate for drive shaft at the left
1. 4.1 Tighten fastening screws -2- .
  > Tightening torque 8 Nm (5.9 ftlb.)
