Installing Pressure Accumulator

Information

Check the following before installing the air line:

• Check that the cutting ring -1-  and Voss threaded joint -2-  are on the air line -3-  (not relevant if the component was replaced and the Voss threaded joint that is pre-fitted on the component is used).
• Check that the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check: Air line connection

Only one marking -1-  on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check: Air line fitted correctly

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Tighten nut -5-  .

      > Tightening torque 20 Nm

   Tighten air line -4-  .

   > Tightening torque 3.5 Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

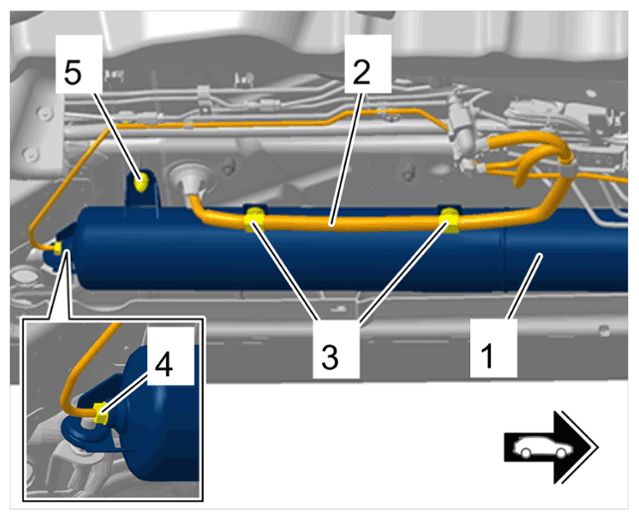

Mounting for pressure accumulator
