Installing Compressor

Information

Check the following before installing the air line:

• Check that the cutting ring -1-  and Voss threaded joint -2-  are on the air line -3-  (not relevant if the component was replaced and the Voss threaded joint that is pre-fitted on the component is used).
• Check that the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check: Air line connection

Only one marking -1-  on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check: Air line fitted correctly

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Tighten screws -1-  .

      > Tightening - torque 20 Nm (15 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

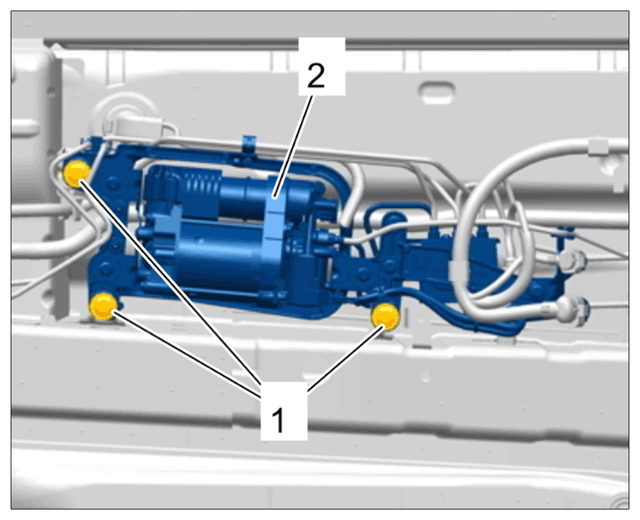

      Mounting for compressor holder and valve unit

   2. 1.2 Tighten union nut -2-  .

      > Tightening - torque 3.5 Nm (2.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Lines on compressor

   3. 1.3 Tighten union nuts -1-  .

      > Tightening - torque 3.5 Nm (2.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure lines to valve block
