Rear Seats

Location	Description	Type	Basic value
Screws securing supporting bow to rear seats	Item 1	Tightening torque	12 Nm (9 ftlb.)

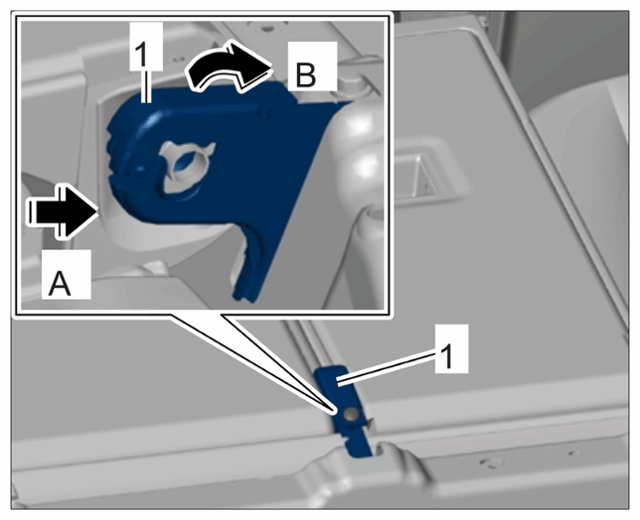

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Supporting bow
Screws for inner backrest mount (on body side)		Tightening torque	22 Nm (16 ftlb.)

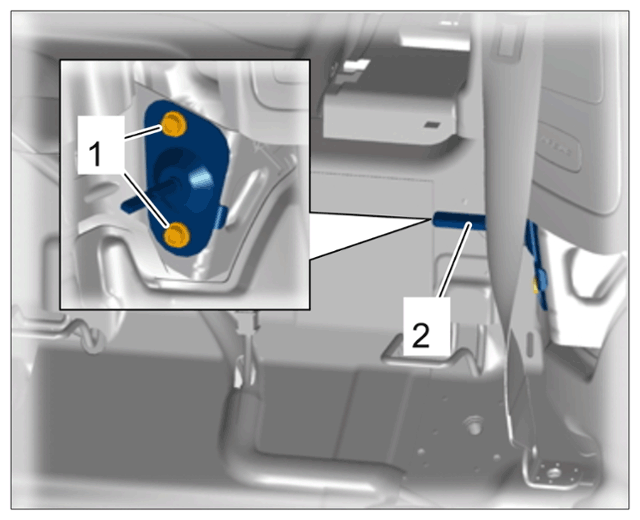

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner mount for rear backrest
Screws for outer backrest mount (on body side)		Tightening torque	22 Nm (16 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer backrest mount
Mount for load-through provision (on backrest side)	Item 1	Tightening torque	39 Nm (29 ftlb.)

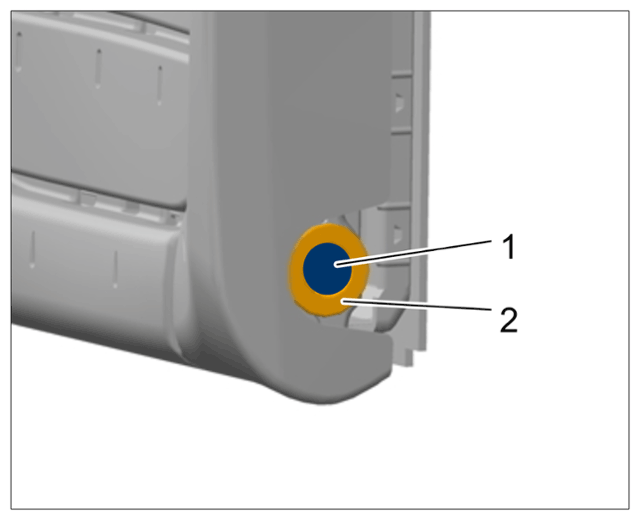

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Load-through provision mount
Inner mount for rear backrest (on backrest side)	Item 2	Tightening torque	39 Nm (29 ftlb.)

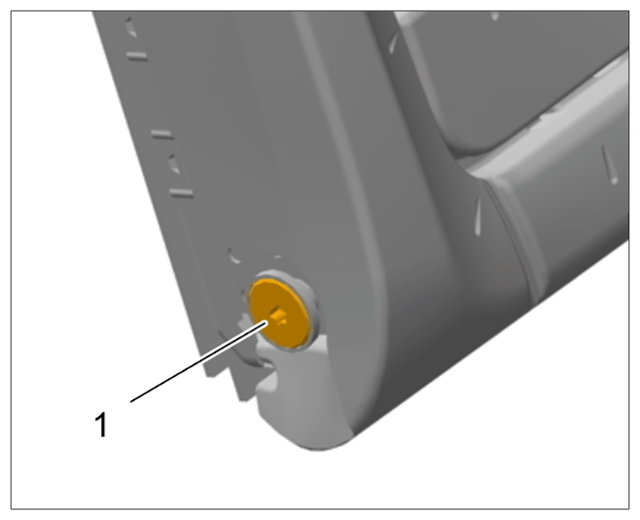

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner mount for rear backrest

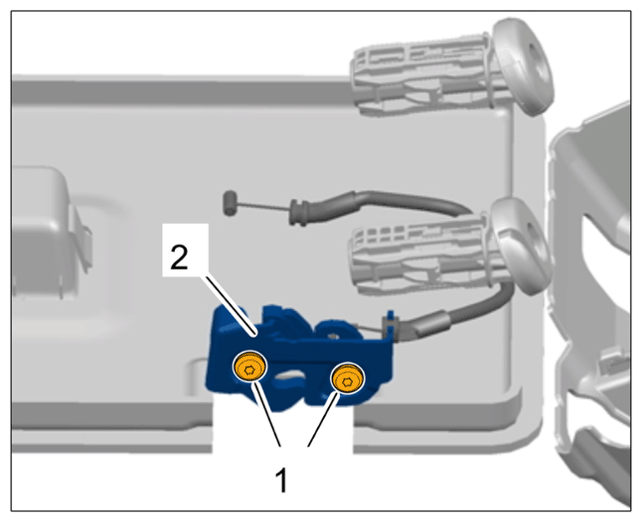

Screws for rear backrest lock	Item 1	Tightening torque	26 Nm (19 ftlb.)

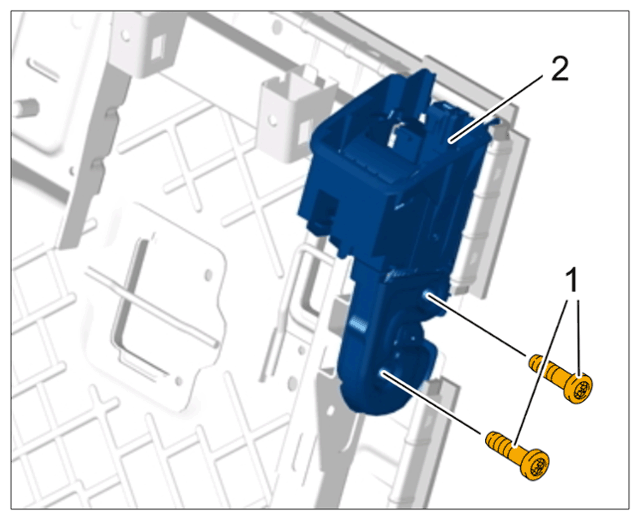

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Backrest lock
Screws for rear backrest lock, centre	Item 1	Tightening torque	26 Nm (19 ftlb.)

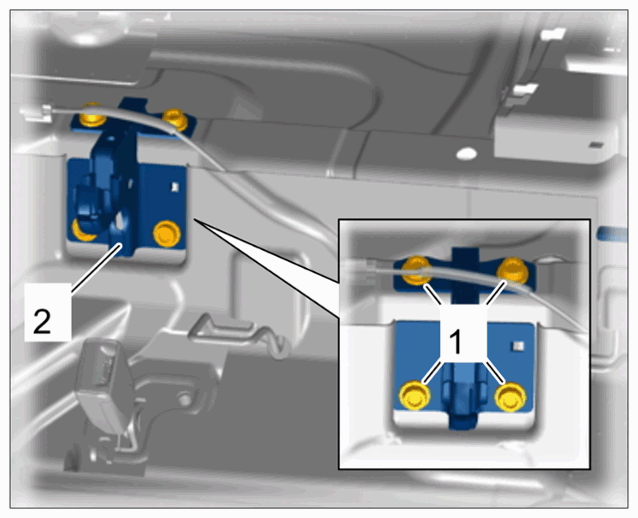

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Backrest lock
Screws for upper trim panel on load-through provision	Item 1 to 4	Tightening torque	3.5 Nm (2.5 ftlb.)

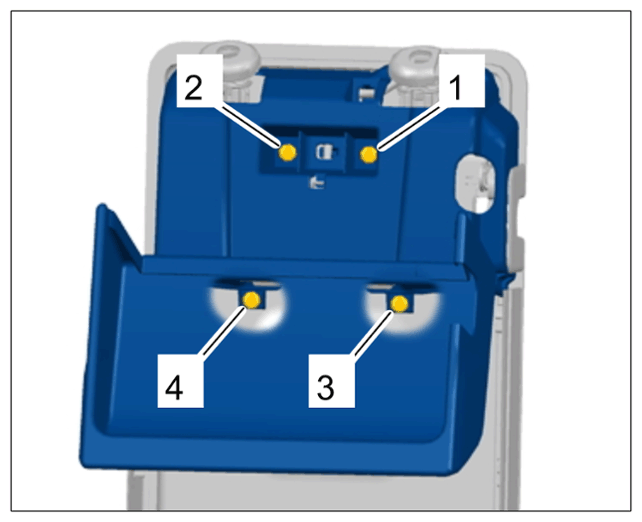

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper trim panel on load-through provision
Screws securing armrest to load-through provision	Item 2	Tightening torque	4.5 Nm (3.25 ftlb.)

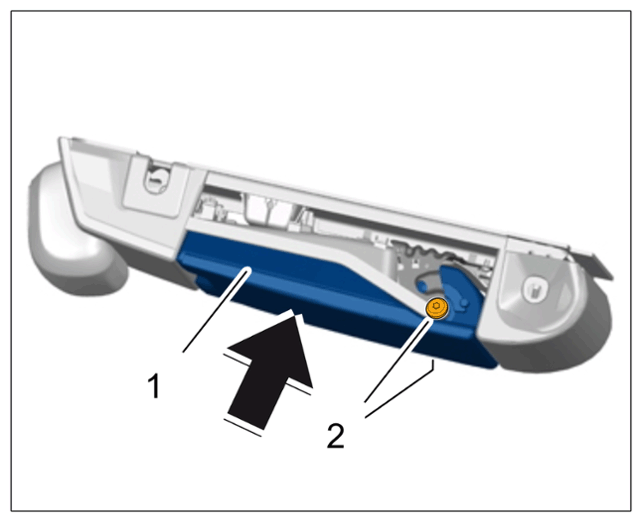

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Armrest with cover
