| Screw securing door opener to door panel |
Item 1 |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

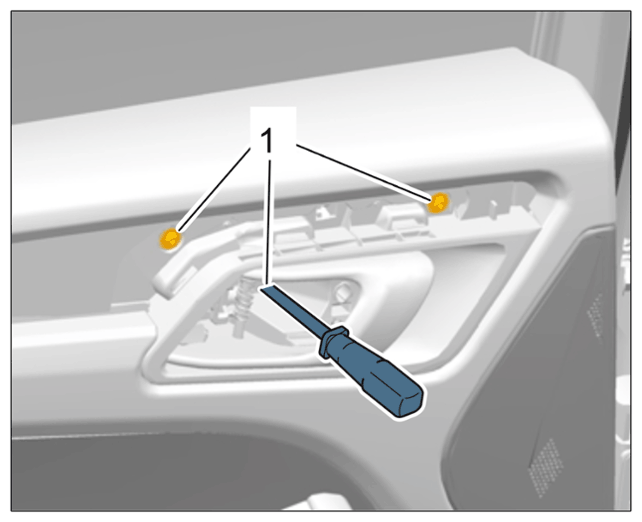

Door panel mounting |
| Screw securing lower door panel to body |
Item 1 |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

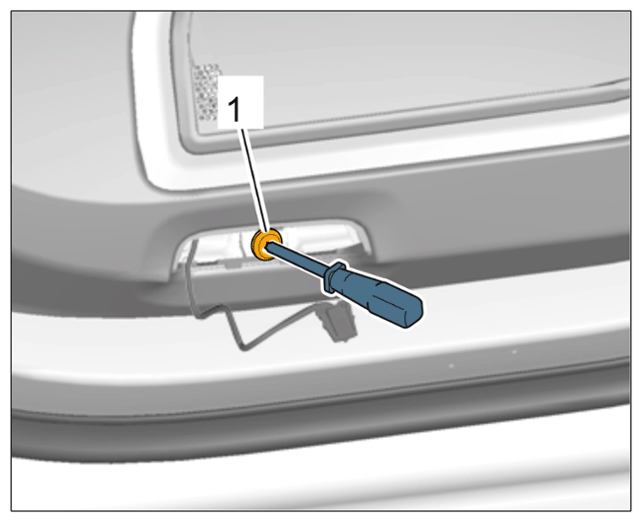

Mounting at bottom of door |
