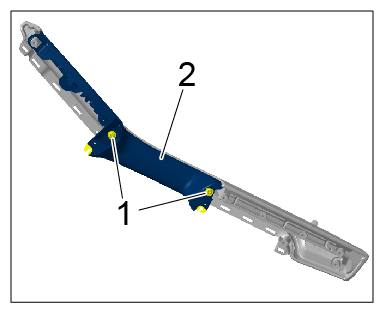

| Screw armrest to door panel |
Item 1 |
Tightening torque |
2.3 Nm (1.6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws for armrest |

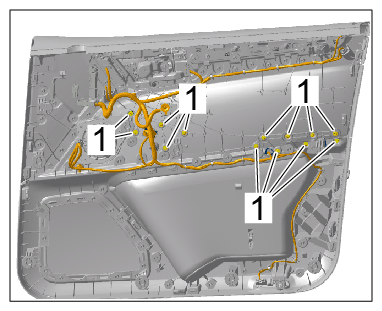

| Screw trim to door trim |
Item 1 |
Tightening torque |
2.3 Nm (1.6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws on trim |
