Front Seat

Location	Description	Type	Basic value

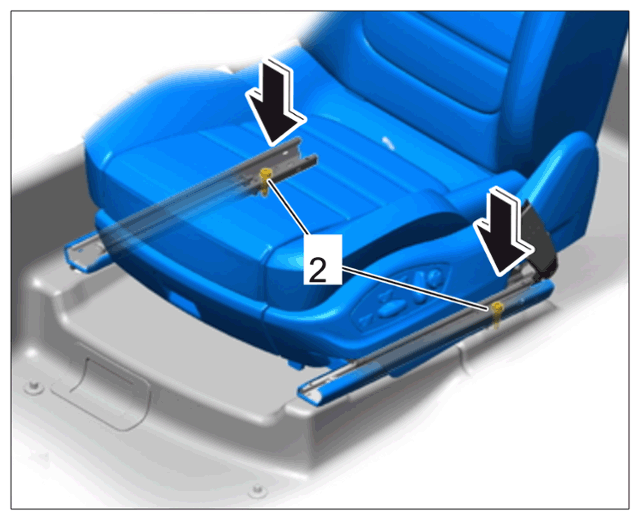

Screws for front seat rail		Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front seat rail

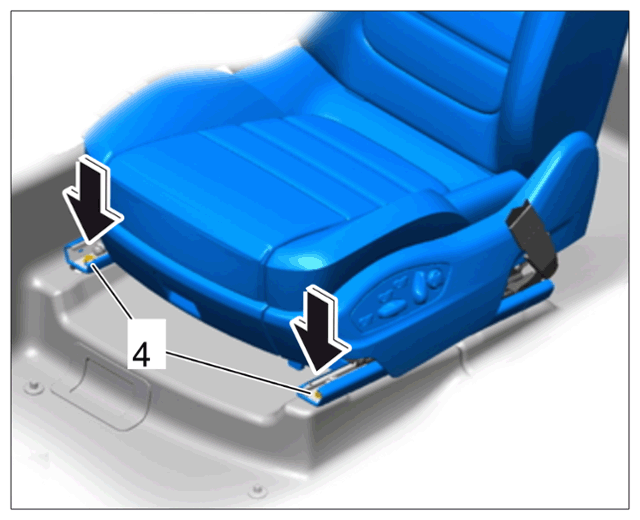

Screws for rear seat rail		Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front seat on seat frame at rear

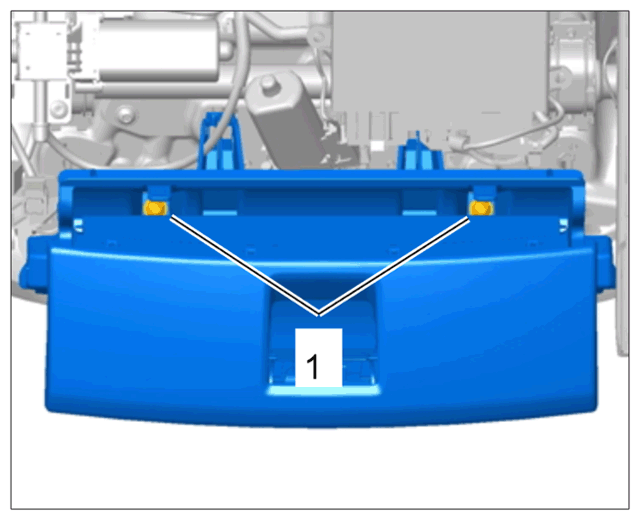

Screw for seat storage tray	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Storage tray

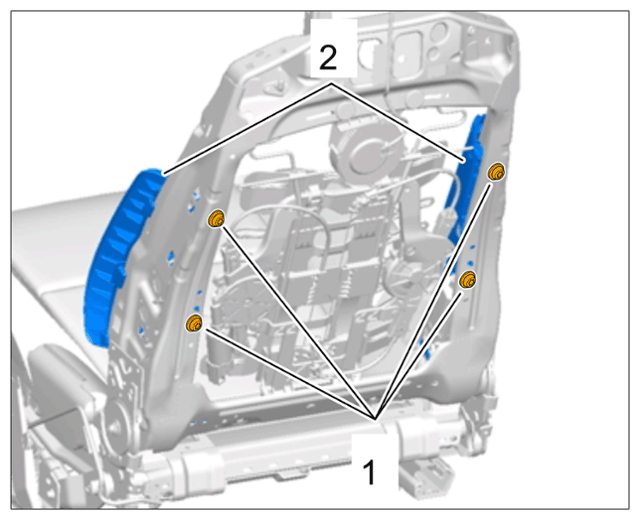

Screw securing holder for air cushion to backrest	Item 1	Tightening torque	2.5 Nm (1.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air cushion for backrest
Screw securing seat-surface extension to seat	Item 2	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat-surface extension

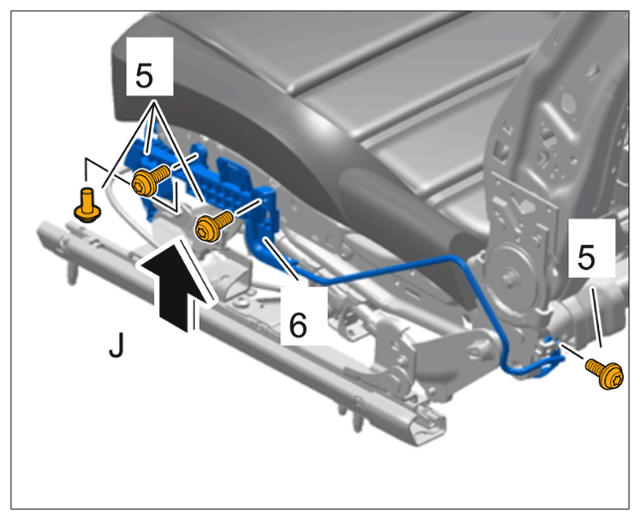

Screw securing side bracket to seat	Item 5	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side bracket

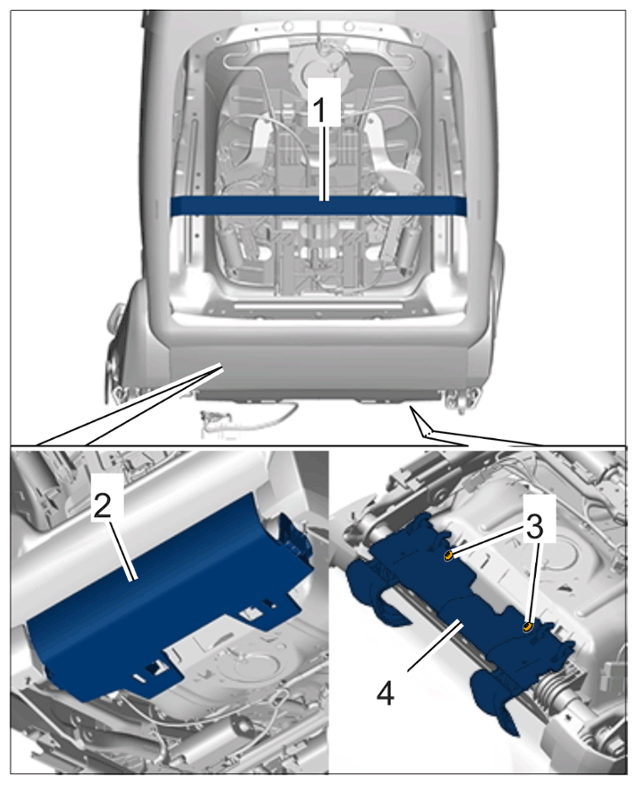

Screws securing ISOFIX to seat frame	Item 3	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Restraining strap

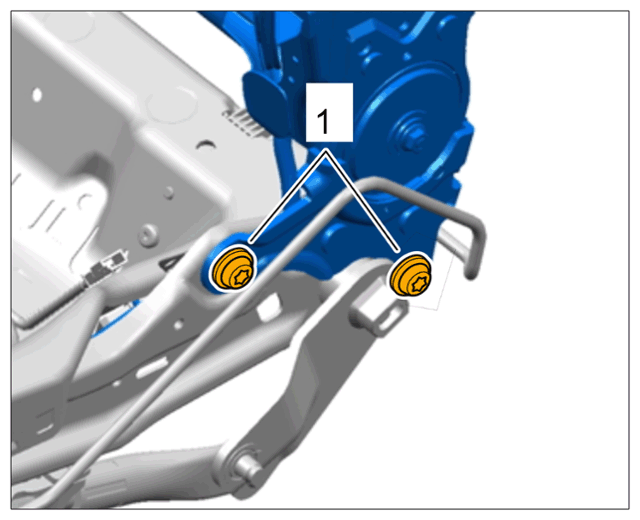

Screws securing backrest frame to seat frame	Item 1	Tightening torque	33 Nm (24 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Backrest frame

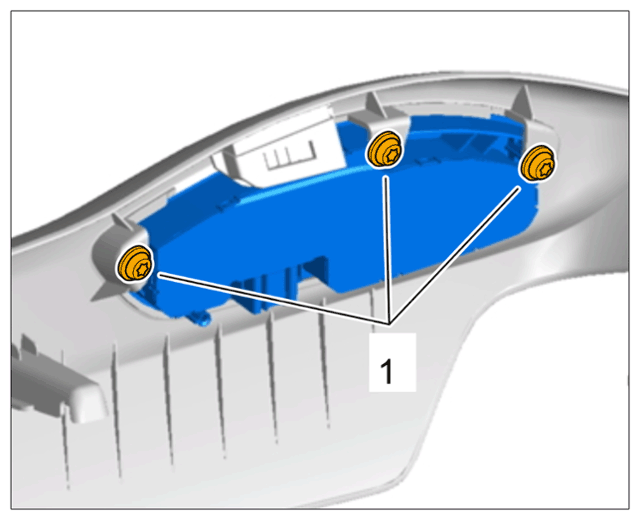

Screw on switch for front seat adjustment	Item 1	Tightening torque	2.5 Nm (1.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Switch for seat adjustment
