Cover For Rear Lock Carrier

Location Description Type Basic value Tolerance
Nut securing cover for rear lock carrier to body Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)

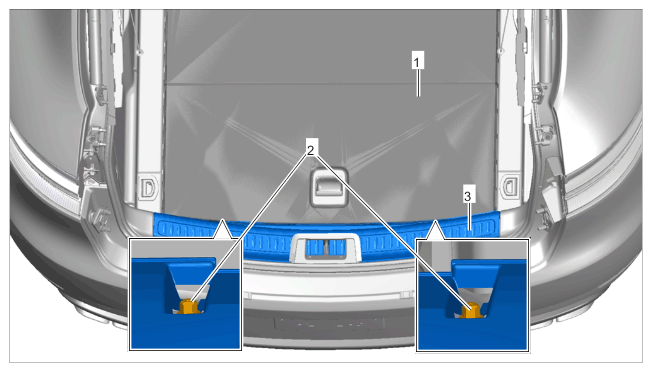

G15161895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for rear lock carrier
