7X Body-Equipment Inside General -- 95B - MACAN (95B)
>>
WM, 7X00IN Technical Values
>>
70 - Trim Panels, Insulation
>>
A-Pillar Trim Panel
A-Pillar Trim Panel
Location
Description
Type
Basic value
Tolerance
Screw securing A-pillar trim panel to body
Item 2
Tightening torque
5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

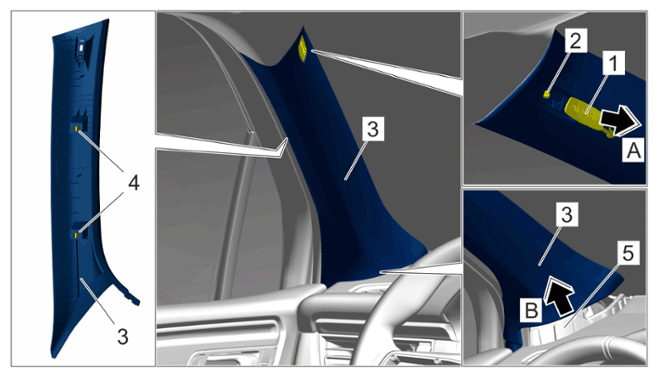

A-pillar trim panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
