Preparing Vehicle Flange - Vehicle Flange With Cut Adhesive Bead

Information

• The adhesive residues help new adhesive to stick. Keep cut surfaces clean and free of grease and do not clean with cleaning solution.

1. Remove coarse dirt from the bonding area.
2. Cut back adhesive bead.

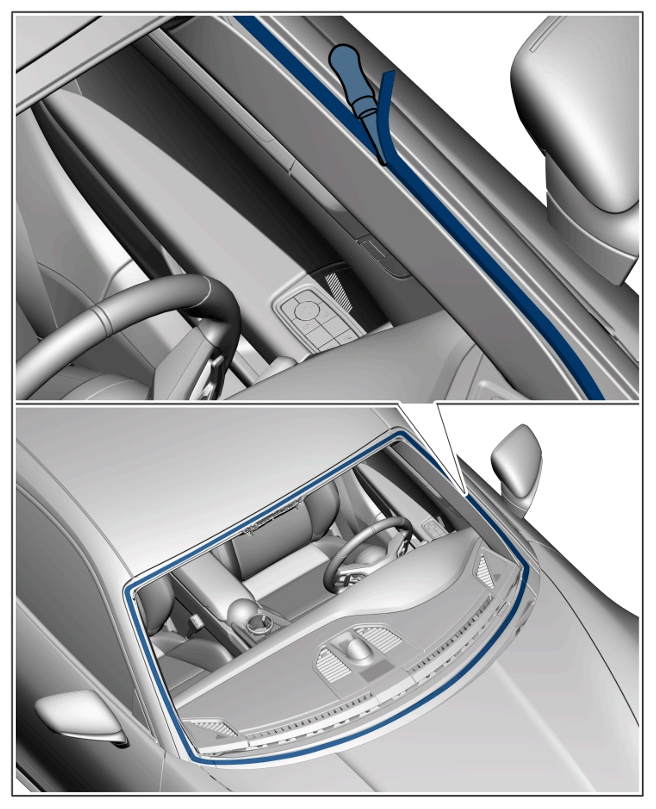

   Courtesy of AUDI OF AMERICA, LLC

   Cutting back adhesive

   1. 2.1 Clean blade of > VAS 861 005 - scraper set  with isopropanol.
   2. 2.2 Cut back adhesive residue using > VAS 861 005 - scraper set  until a surface coating of adhesive remains.
3. Activate the cut surface once using the activator included in the adhesive set.

1. 3.1 Apply a light coating of activator to the cut surface in one movement using the applicator brush. Avoid applying two coatings in the same place.

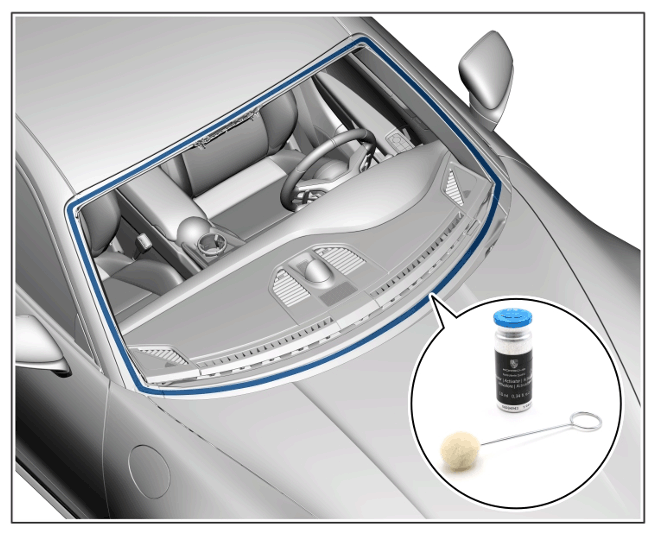

   Courtesy of AUDI OF AMERICA, LLC

   Activator on vehicle flange

2. 3.2 Allow the activated cut surface to dry off for 10 minutes.

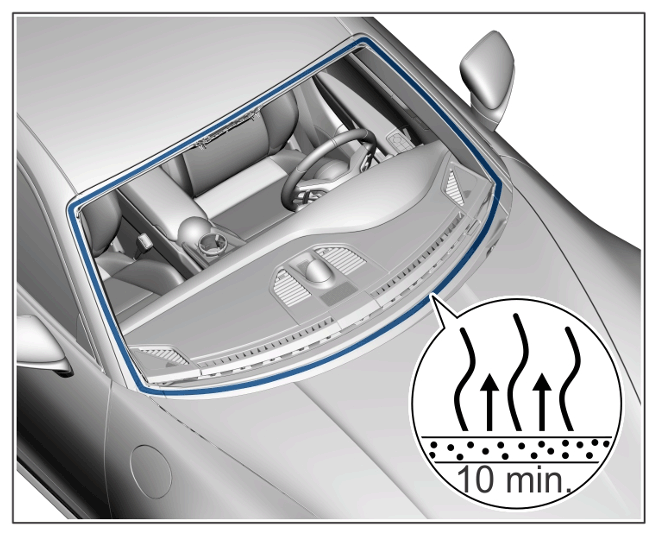

   Courtesy of AUDI OF AMERICA, LLC

   Activator drying time

3. 3.3 The component must be bonded to the vehicle flange within 2 hours.
