Front Seat-Belt Buckle

Location Description Type Basic value Tolerance
Fastening screw securing front seat-belt buckle to seat Item 3 Tightening torque 50 Nm (37 ftlb.)

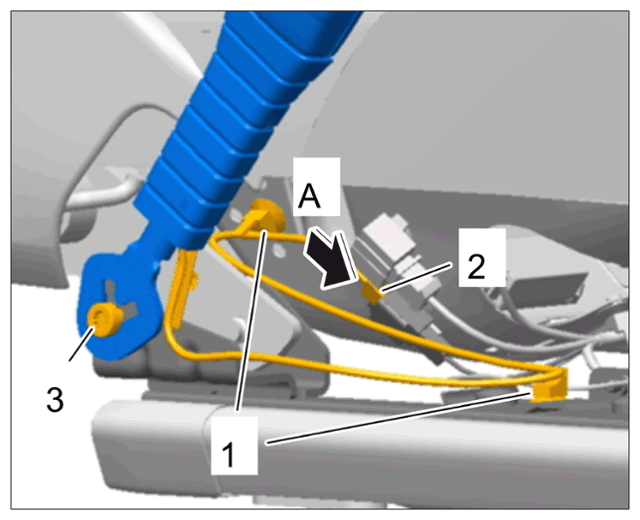

G15161189Courtesy of AUDI OF AMERICA, LLC

Front seat-belt buckle
