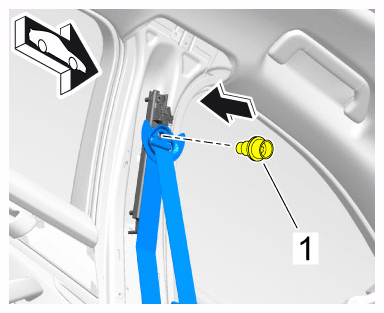

| Screw securing sash guide cover to adjustment fitting |
Item 1 |
Tightening torque |
50 Nm (37 ftlb.) |
|
 Courtesy of AUDI OF AMERICA, LLC
Sash guide cover |

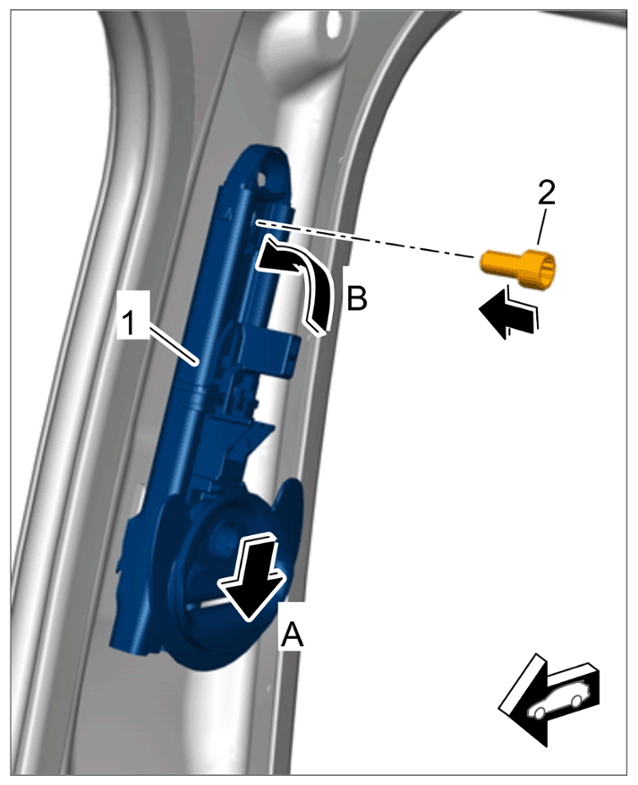

| Screw securing adjustment fitting to B-pillar |
Item 2 |
Tightening torque |
22 Nm (16 ftlb.) |
|
 Courtesy of AUDI OF AMERICA, LLC
Adjustment fitting |
