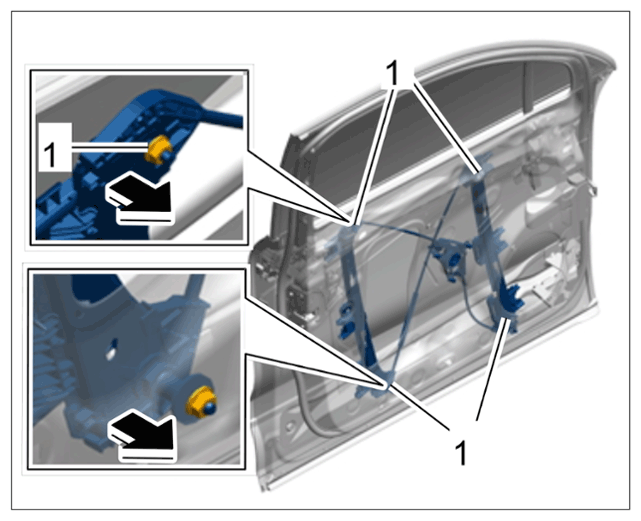

| Nuts securing front power windows mechanism to front door |
Item 1 |
Tightening torque |
7.5 Nm (5.5 ftlb.) |
|
 Courtesy of AUDI OF AMERICA, LLC
Front power windows mechanism |

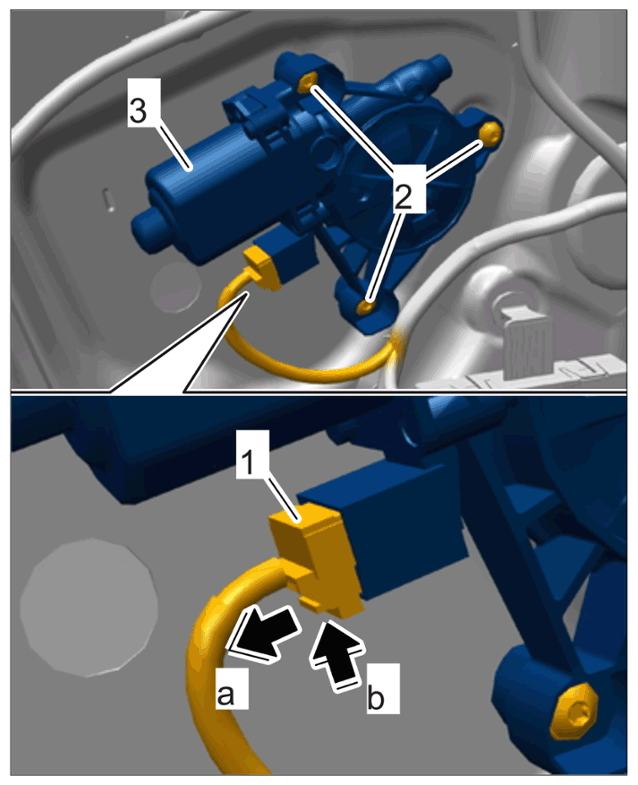

| Screws securing front power window motor to front door |
Item 2 |
Tightening torque |
3.3 Nm (2.2 ftlb.) |
|
 Courtesy of AUDI OF AMERICA, LLC
Power window motor |
